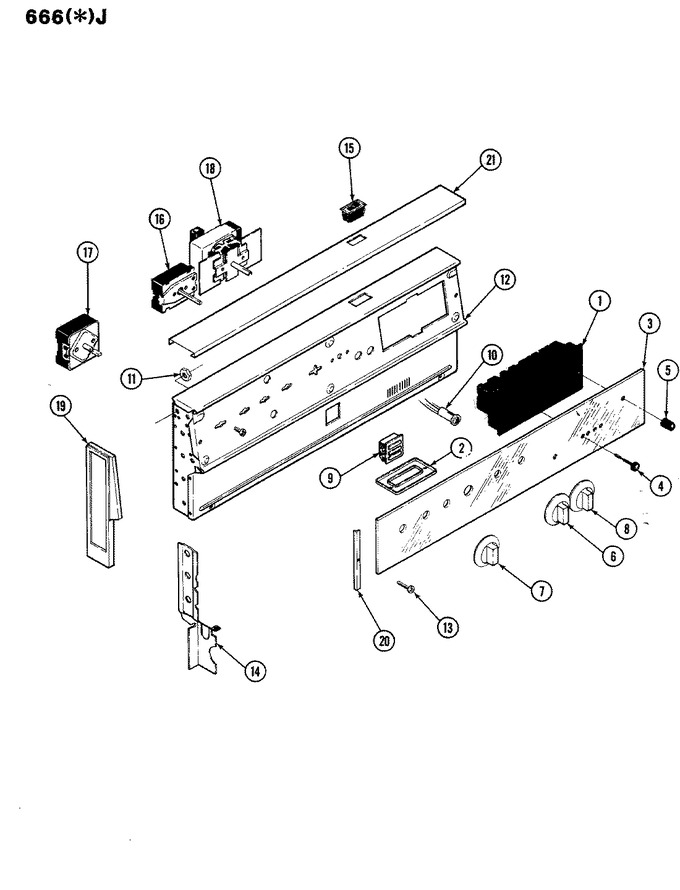

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F201-80 | Cover, Bkgd Wire | 1 |
|
- | ||||
| 1 | 7601P047-60 | + Clock | 1 |
|
- | ||||
| 2 | 4005F191-23 | Cover, Upper Flue Box | 1 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 3 | 7910P058-60 | Glass, Backguard | 1 |
|
- | ||||
| 4 | 7711P171-60 | Knob, Clock (button-blk) | 1 |
|
$ 19.90 | ||||
| 5 | 7711P172-60 | Knob, Clock (blk) | 1 |
|
$ 23.55 | ||||
| 6 | 7711P383-60 | Knob, Selector | 1 |
|
- | ||||
| 7 | 7711P384-60 | Knob, Switch | 1 |
|
- | ||||
| 8 | 7711P382-60 | Knob, Thermostat | 1 |
|
- | ||||
| 9 | 7407P019-60 | Light, Indicator | 1 |
|
- | ||||
| 10 | 7407P029-60 | Light, Signal | 1 |
|
- | ||||
| 11 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 12 | 2601W265-81 | Backguard Assy, White | 1 |
|
- | ||||
| 12 | 2601W265-90 | Backguard Assy | 1 |
|
- | ||||
| 12 | 2601W265-84 | Backguard Assy, Almond | 1 |
|
- | ||||
| 13 | 7101P008-60 | Screw | 1 |
|
- | ||||
| 14 | 3807F012-80 | Support | 1 |
|
- | ||||
| 14 | 3807F010-80 | Support | 1 |
|
- | ||||
| 14 | WPW10068250 | Screw (Replaces: 7101P074-60) | 1 |
|
$ 3.66 | ||||
| 15 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 1 |
|
$ 91.35 | ||||
| 15 | 7101P101-60 | Screw, Thermostat | 1 |
|
- | ||||
| 16 | 7403P081-60 | Switch, Selector | 1 |
|
- | ||||
| 16 | 7101P102-60 | Screw, Inf Switch | 1 |
|
- | ||||
| 17 | 7403P170-60 | Switch, Inf. Control | 1 |
|
- | ||||
| 18 | 7404P052-60 | Thermostat | 1 |
|
- | ||||
| 19 | 7726P031-60 | Trim, Bkgd End (lt) | 1 |
|
- | ||||
| 19 | 7726P032-60 | Trim, Bkgd End (rt) | 1 |
|
- | ||||
| 20 | 7720P088-60 | Trim, Glass Ret | 1 |
|
- | ||||
| 21 | 7715P015-60 | Trim, Backguard Top | 1 |
|
- |
