View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Control Panel
04 - Door\drawer
05 - Internal Controls
06 - Oven
07 - Top Assy.
SELECT A DIAGRAM
New Model Search:

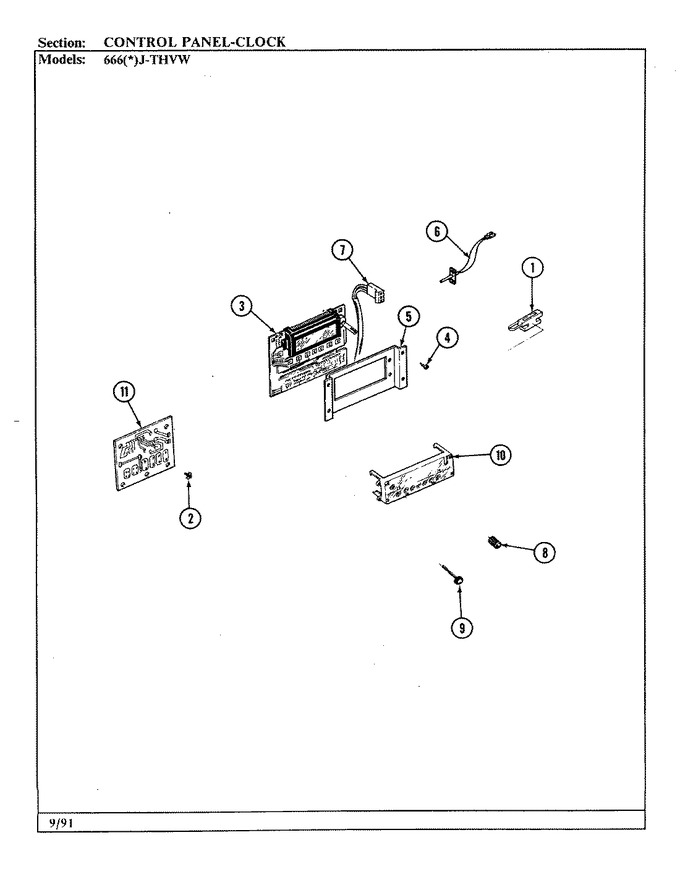

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8007P003-60 | Bushing, Snap | 1 |
|
- | ||||
| 2 | 8004P020-60 | Support, Relay Board | 1 |
|
- | ||||
| 3 | 7601P175-60 | Clock, Electronic | 48 |
|
- | ||||
| 3 | 7601P154-60 | Clock | 39 |
|
- | ||||
| 3 | 7601P100-60 | Clock | 1 |
|
- | ||||
| 3 | 7601P162-60 | Clock | 44 |
|
- | ||||
| 4 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 6.98 | ||||
| 5 | 3801F118-45 | Bracket, Clock Mtg | 1 |
|
- | ||||
| 6 | 12001656 | Probe, Oven Sensor (Replaces: 7430P008-60) | 34 |
|
Immediately | $ 39.55 | |||
| 6 | 12001656 | Probe, Oven Sensor (Replaces: 7430P005-60) | 1 |
|
Immediately | $ 39.55 | |||
| 6 | 7417P002-60 | Connector, Pin | 1 |
|
- | ||||
| 7 | 5170P087-60 | Harness, Oven Sensor | 34 |
|
- | ||||
| 7 | 5170P100-60 | Harness, Oven Sensor | 1 |
|
- | ||||
| 8 | 7711P172-60 | Knob, Clock (blk) | 1 |
|
$ 23.55 | ||||
| 8 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 44 |
|
$ 12.13 | ||||
| 9 | 7711P171-60 | Knob, Clock (button-blk) | 1 |
|
$ 19.90 | ||||
| 9 | 7711P452-60 | Button, Clock Set | 44 |
|
- | ||||
| 10 | 7730P005-60 | Lens, Clock | 1 |
|
- | ||||
| 11 | 5170P006-60 | Harness, Relay | 1 |
|
- | ||||
| 11 | 7428P005-60 | Relay, Board Assy. | 1 |
|
$ 192.58 | ||||
| 11 | 5170P007-60 | Harness Oven Sensor | 34 |
|
- |
