02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

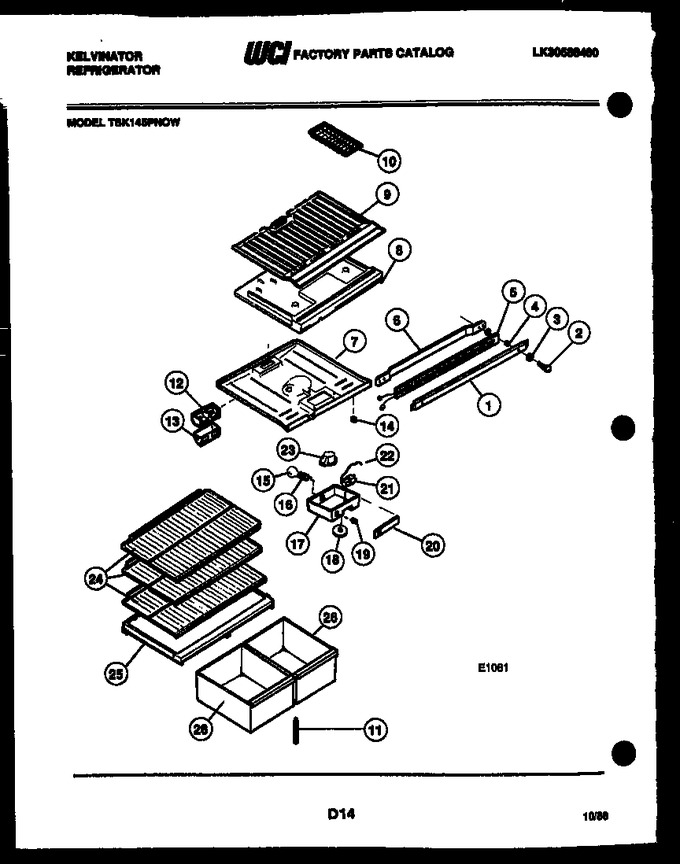

| 1 | 3916133 | Mullion, Coffee |
|
- | |||||
| 2 | G183103 | Screw-mullion (4) |
|
- | |||||
| 3 | G166847 | Washer-no. 10 Steel (2) |
|
- | |||||
| 4 | G166848 | Spacer-mullion (2) |
|
- | |||||
| 5 | G187921 | Heater-mullion |
|
- | |||||
| 6 | G166709 | Strap, Mullion Mounting |
|
- | |||||
| 7 | 3015448 | Top Panel-refrigerator |
|
- | |||||
| 8 | G163219 | Divider-styrofoam |
|
- | |||||
| 9 | G162857 | Bottom Panel-freezer |
|
- | |||||
| 10 | G156376-18 | Ice Tray (2) |
|
- | |||||
| 11 | G166310-02 | Support-fan Cover |
|
- | |||||
| 12 | G162675 | Air Deflector |
|
- | |||||
| 13 | G162178 | Cover, Deflector |
|
- | |||||
| 14 | G162672 | Light Switch |
|
- | |||||
| 15 | K1186186 | Light Bulb |
|
- | |||||
| 16 | G168302 | Light Socket |
|
- | |||||
| 17 | G176722-03 | Control Box |
|
- | |||||
| 18 | G490107-02 | Knob-temperature Control |
|
- | |||||
| 19 | G178402-01 | Switch-energy Saver |
|
- | |||||
| 20 | G189592 | Label-control Box |
|
- | |||||
| 21 | G162205-12 | Control Temperature |
|
- | |||||
| 22 | G142176-11 | Sleeve-plastic Tube |
|
- | |||||
| 23 | G187484 | Timer-defrost |
|
- | |||||
| 24 | G172172-01 | Shelf-refrigerator (3) |
|
- | |||||
| 25 | G162957-02 | Cover-pan |
|
- | |||||
| 26 | 3016706 | Pan-storage (2) |
|
- | |||||
| 17A | G187363 | Screw |
|
- | |||||
| 21A | G107080 | Screw |
|
- | |||||
| 23A | G105289 | Screw |
|
- | |||||
| 7A | G162673 | Screw-top Mounting (3) (non-illustrated) |
|
- |
