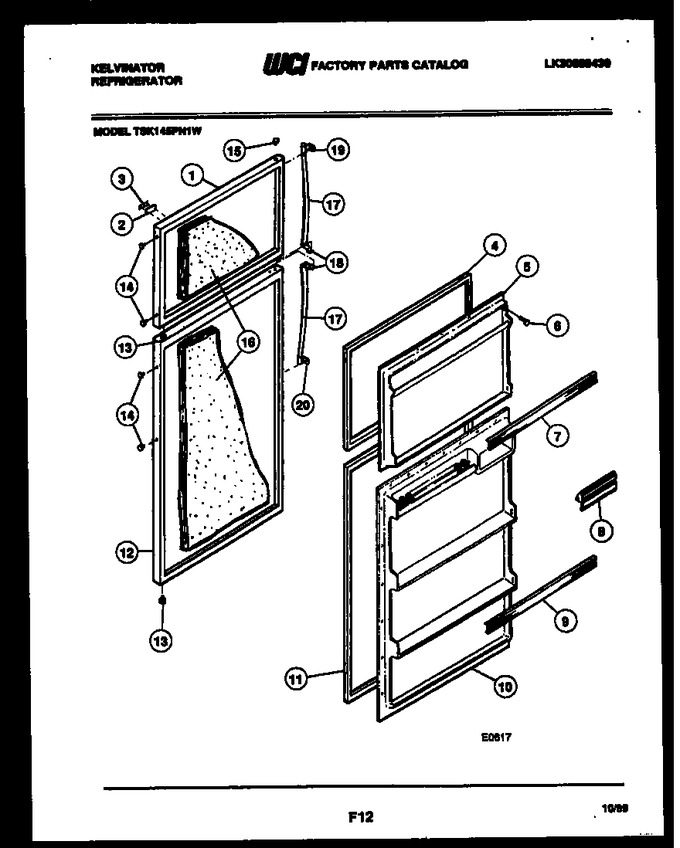

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3916313		Freezer Door-almond		Appelez-nous	-
2	G178292		Frame Nameplate		Appelez-nous	-
3	G189500-01		Label-nameplate		Appelez-nous	-
4	G186932-03		Gasket-freezer		Appelez-nous	-
5	G186692-01		Inner Panel-freezer		Appelez-nous	-
6	G162585		Screw		Appelez-nous	-
7	G164698-48		Door Rack-freezer		Appelez-nous	-
8	G161776-51		Dairy Door		Appelez-nous	-
9	3001315		Door Rack (2)		Appelez-nous	-
10	G186648-01		Inner Panel-refrigerator		Appelez-nous	-
11	G186932-02		Gasket-refrigerator		Appelez-nous	-
12	3916318		Refrigerator Door-almond		Appelez-nous	-
13	G183138		Bearing Hinge (8)		Appelez-nous	-
14	G162977-11		Button Plug-almond		Appelez-nous	-
15	G169332-11		Button Plug, Almond		Appelez-nous	-
16	G89643		Insulation (bulk)		Appelez-nous	-
17	3201377		Handle Grip (2)		Appelez-nous	-
18	G189453-01		Handle End (2)		Appelez-nous	-
19	G189452-01		Handle End		Appelez-nous	-
20	G189451-01		Handle End		Appelez-nous	-
*91687	G185566		Screw		Appelez-nous	-
17A	3200995		Insert Grip (2) (non-illustrated)		Appelez-nous	-
2A	G153407-60		Tape-mounting (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
