SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
05 - Shelves And Supports
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:

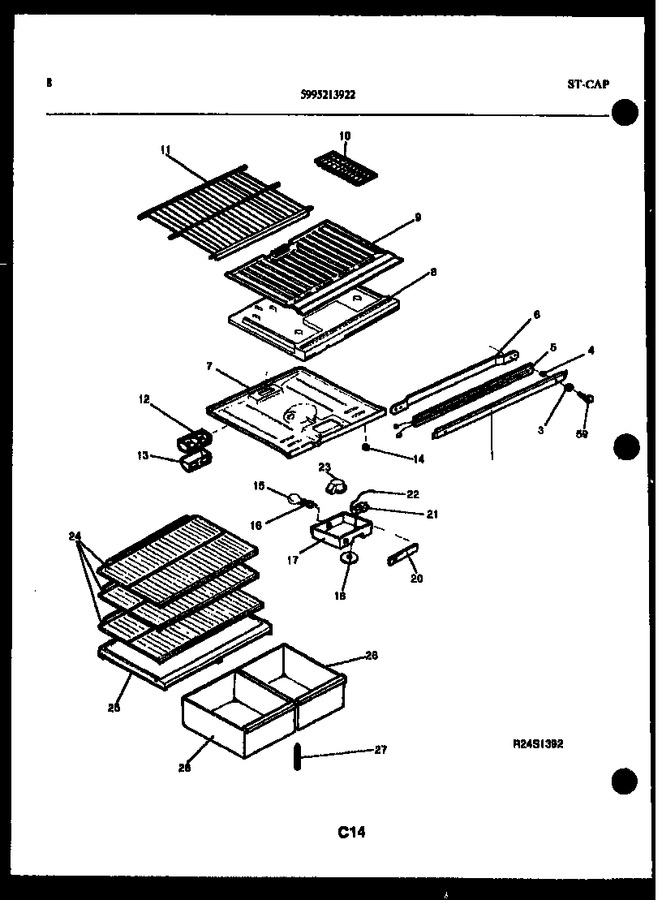

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303916134 | Mullion, Almond |
|
- | |||||
| 3 | 5308003607 | Washer, No. 10 Steel, 7/23 X 7/16 Od |
|
$ 1.00 | |||||
| 4 | 5303200464 | Spacer, Mullion Mtg, (2) |
|
- | |||||
| 5 | 5303281861 | Heater-mullion |
|
- | |||||
| 6 | 5308003604 | Strap, Mullion Mtg |
|
- | |||||
| 7 | 5303212518 | Bushing, Snap-in, Plastic (non-illustrated) |
|
- | |||||
| 7 | 5303001380 | Screw |
|
- | |||||
| 7 | 5303015448 | Top Panel-refr, W/ Snap Bushing |
|
- | |||||
| 8 | 5308000759 | Divider, Styrofoam |
|
- | |||||
| 8 | 3001383 | Wiring Harness, Control/divider (non-illustrated) |
|
- | |||||
| 9 | 5308000748 | Bottom Panel-freezer |
|
- | |||||
| 10 | 5303001324 | Tray-ice, Plastic |
|
- | |||||
| 11 | 5303001290 | Screw-shelf Support, Cr Flat Head, 8(ab) X 1-3/8 (non-illustrated) |
|
- | |||||
| 11 | 5308000244 | Support-frzr Shelf (non-illustrated) |
|
- | |||||
| 11 | 5316686201 | Shelf-freezer |
|
- | |||||
| 12 | 5308000071 | Deflector-air |
|
- | |||||
| 13 | 5303001546 | Cover - Air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp |
|
- | |||||
| 16 | 5308000129 | Socket-light/lamp |
|
$ 62.16 | |||||
| 17 | 5303282143 | Box-control |
|
- | |||||
| 18 | 5308010011 | Knob-temp Control |
|
- | |||||
| 20 | 5303282232 | Label-control Box |
|
- | |||||
| 21 | 5308015762 | Control, Temperature |
|
- | |||||
| 21 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 22 | 5303916855 | Sleeve-plastic Tube |
|
$ 60.96 | |||||
| 23 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 23 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303274040 | Shelf-full, Sliding, Refr, (2) |
|
- | |||||
| 25 | 5308000749 | Cover-crisper Pan |
|
- | |||||
| 26 | 5303282140 | Pan-crisper, (2) |
|
- | |||||
| 27 | 5303205987 | Support-crisper Cvr, Adjustable |
|
$ 48.41 | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| *22861 | 3202734 | Plug-button, Control Box |
|
- | |||||
| *22861 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 |
