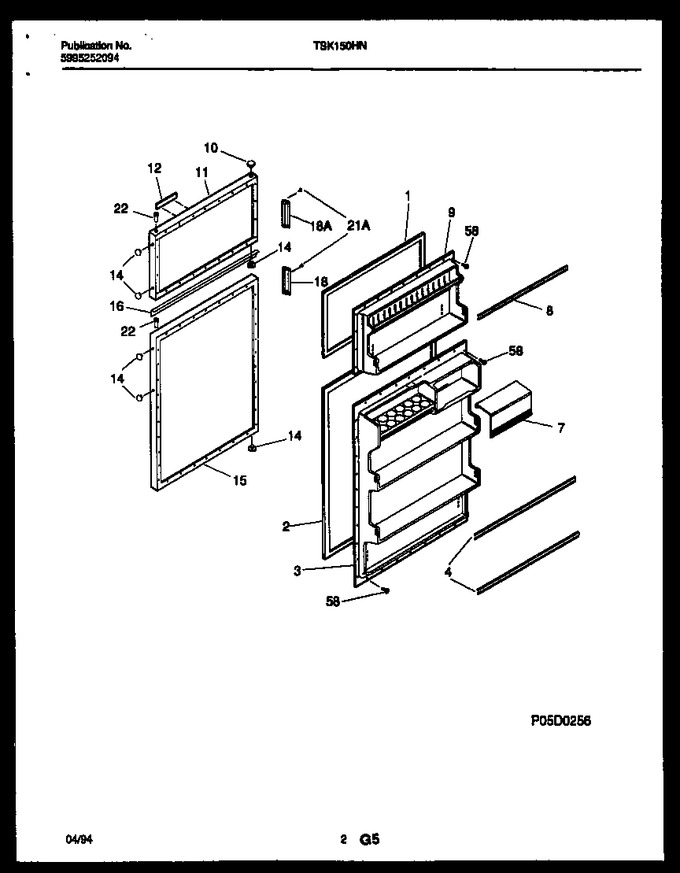

02 - Door Parts
03 - Cabinet Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001399 | Gasket-frzr Door, Beige, Magnetic |
|
- | |||||
| 2 | 5303001398 | Gasket-refr Door, Beige, Magnetic |
|
- | |||||
| 3 | 5318664801 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303282141 | Rack-door |
|
- | |||||
| 7 | 5303273191 | Door-dairy |
|
- | |||||
| 8 | 5303282142 | Rack-door |
|
- | |||||
| 9 | 5318669201 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303916812 | Panel-frzr Door, White, W/ Insulation |
|
- | |||||
| 12 | 5303273164 | Nameplate Assy |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303916814 | Panel-refr Door, White, W/ Insulation |
|
- | |||||
| 16 | 5318755101 | Trim-door, With Tape |
|
- | |||||
| 18 | 5303274256 | Handle-door, Chrome/black |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *45222 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 18A | 5303274255 | Handle-door, Chrome/black |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
