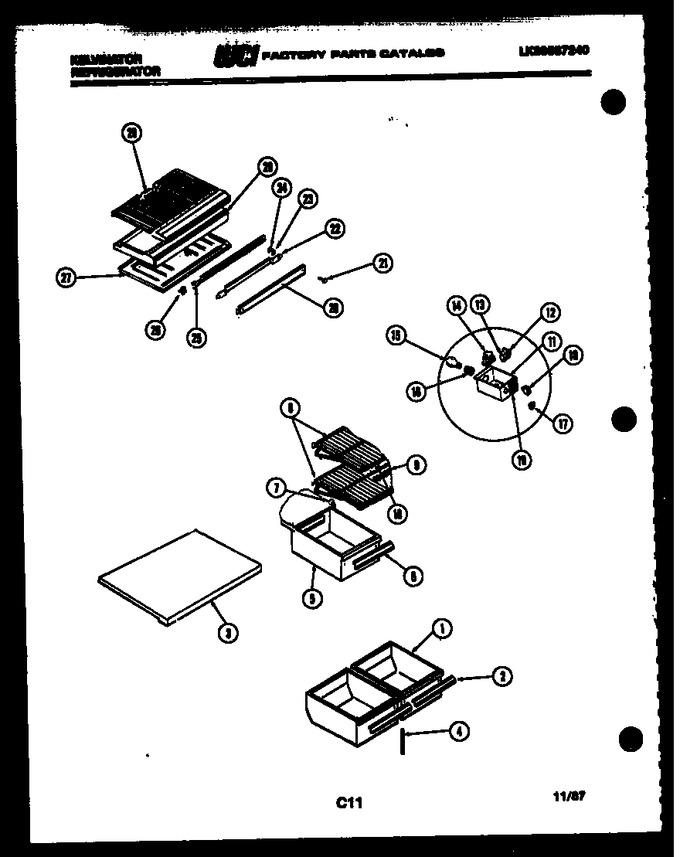

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G178270-01		Pan-crisper		Appelez-nous	-
2	G161013-45		Trim (2)		Appelez-nous	-
3	G178216-01		Cover, Crisper		Appelez-nous	-
4	G166310-02		Support, Cover		Appelez-nous	-
5	G177623-01		Meat Pan		Appelez-nous	-
6	G161013-46		Trim		Appelez-nous	-
7	G177106-01		Cover, Meat Pan		Appelez-nous	-
8	G177390-03		Shelf-cantil (4)		Appelez-nous	-
9	G172434-12		Trim (4)		Appelez-nous	-
10	G170910		Clip, Shelf (8)		Appelez-nous	-
11	G174655-15		Box, Control		Appelez-nous	-
12	G162205-11		Control, Temperature		Appelez-nous	-
13	G142176-11		Tube Plastic		Appelez-nous	-
14	G187484		Timer-defrost		Appelez-nous	-
15	G165723		Bulb, Light		Appelez-nous	-
16	G168302		Socket Light		Appelez-nous	-
17	G174781-06		Knob Control		Appelez-nous	-
18	G178402-01		Switch Slide		Appelez-nous	-
19	G178294-01		Label-cntrl Box		Appelez-nous	-
20	G180373-11		Mullion Almond		Appelez-nous	-
21	G183103		Screw-mounting (4)		Appelez-nous	-
22	G490087		Strap, Mullion Mounting		Appelez-nous	-
23	G166847		Washer-steel (4)		Appelez-nous	-
24	G490082		Spacer (2)		Appelez-nous	-
25	G177254		Heater, Mullion		Appelez-nous	-
26	G162672		Switch Light		Appelez-nous	-
27	G490021-02		Top, Refrigerator		Appelez-nous	-
28	G176777		Divider		Appelez-nous	-
29	G185912		Bottom, Freezer		Appelez-nous	-
*17772	G174818		Harness, Divider		Appelez-nous	-
11A	G187363		Screw		Appelez-nous	-
12A	G107080		Screw		Appelez-nous	-
14A	G105289		Screw		Appelez-nous	-
27A	G162673		Screw Mounting (3) (non-illustrated)		Appelez-nous	-
