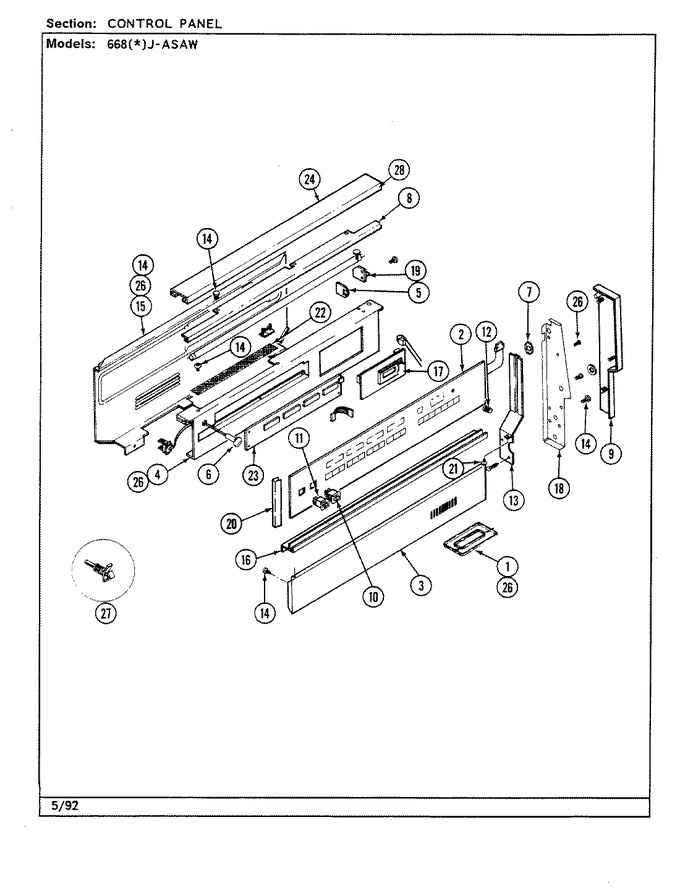

SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Drawer


05 - Internal Controls


06 - Oven


07 - Top Assy.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4005F296-51		Gasket, Cover	01	Appelez-nous	-
1	7212P032-60		Seal, Cover	01	Appelez-nous	-
2	4876S042-59		Backguard Assy	01	Appelez-nous	-
3	2620W042-84		Panel, Bkgd Lower (almond)	01	Appelez-nous	-
4	3605D184-60		Plate, Mtg.	01	Appelez-nous	-
5	7408P005-60		Receptacle, Lamp	01	Appelez-nous	-
6	7407P029-60		Light, Signal	01	Appelez-nous	-
7	7103P053-60		Nut, Push-on End Cap	01	Appelez-nous	-
8	7706P288-60		Extrusion Glass Retainer	01	Appelez-nous	-
9	7726P029-60		Trim, End Cap (lt)	01	Appelez-nous	-
9	7726P030-60		Trim, Bkgd End (rt)	01	Appelez-nous	-
12	WP7711P492-60		Knob, Clock (blk)   (Replaces: 7711P431-60)	01			$ 12.13
13	3807F348-51		Support, Bkgd End Lf	01	Appelez-nous	-
13	3807F349-51		Support, Bkgd End Rt	01	Appelez-nous	-
13	WPW10068250		Screw   (Replaces: 7101P074-60)	01			$ 3.66
14	WP7101P126-60		Screw   (Replaces: 7101P058-60)	01		Immediately	$ 6.85
15	4005S414-80		Cover Backguard Wire	01	Appelez-nous	-
16	7706P287-60		Extrusion Glass Support	01	Appelez-nous	-
17	7601P174-60		Clock	01	Appelez-nous	-
18	3605F006-80		Plate, Control Panel End (lft)	01	Appelez-nous	-
18	3605F008-80		Plate	01	Appelez-nous	-
19	3801F262-51		Bracket Lamp	01	Appelez-nous	-
20	7720P157-60		Trim, Glass Black	01	Appelez-nous	-
21	WPW10068250		Screw   (Replaces: 7101P074-60)	01			$ 3.66
22	3604F079-80		Shield, Ov Lamp Recpt	01	Appelez-nous	-
23	5170P132-60		Wire Harness Display Board	01	Appelez-nous	-
23	7424P001-60		Display Board	01	Appelez-nous	-
25	WP95292		Light, Control Panel   (Replaces: 7407P004-60)	01		Immediately	$ 121.45
26	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	01			$ 6.98
27	8004P030-60		Support, L.e.d. Board	01	Appelez-nous	-
28	5125A309-60		Wires, Control Panel	01	Appelez-nous	-
