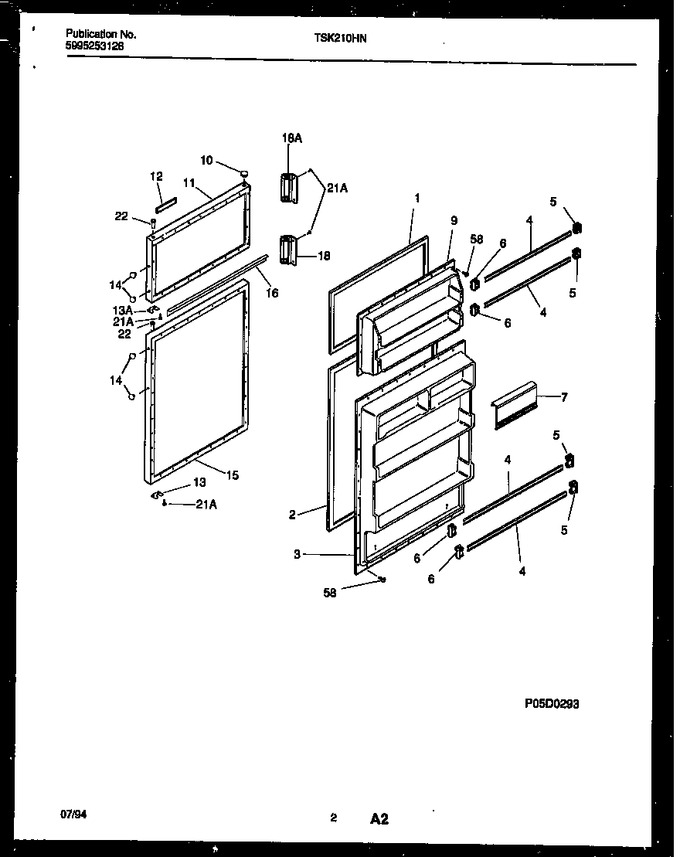

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308016617 | Gasket-frzr Door, Beige, Magnetic |
|
- | |||||
| 2 | 5308015544 | Gasket-refr Door, Beige, Magnetic |
|
- | |||||
| 3 | 5303273170 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303273152 | Rack-door |
|
- | |||||
| 5 | 5317828701 | Support-door Rack, Rh |
|
$ 8.18 | |||||
| 6 | 5317828401 | Support-door Rack, Lh |
|
$ 11.48 | |||||
| 7 | 5303273147 | Door-dairy |
|
- | |||||
| 9 | 3016517 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000176 | Plug-button, Wheat, Hinge Brg Hole |
|
- | |||||
| 11 | 5303917082 | Panel-frzr Door, Wheat, W/insulation |
|
- | |||||
| 12 | 5303273164 | Nameplate Assy |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 5308000180 | Plug-button, Wheat, Handle/dr Stop |
|
- | |||||
| 15 | 5303916884 | Panel-refr Door, Wheat, W/insulation |
|
- | |||||
| 16 | 5318755102 | Trim-door |
|
- | |||||
| 18 | 5303274256 | Handle-door, Chrome/black |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *46116 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 13A | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 18A | 5303274255 | Handle-door, Chrome/black |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
