SELECT A DIAGRAM

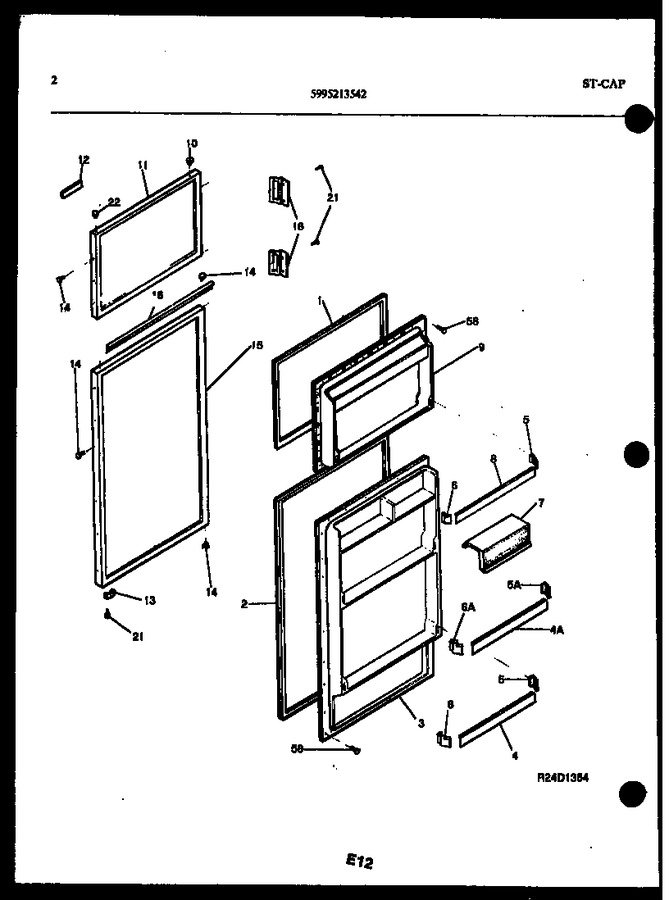

02 - Door Parts


03 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001399		Gasket-frzr Door, Magnetic		Appelez-nous	-
2	5303274673		Gasket-refr Door, Magnetic		Appelez-nous	-
3	5303274585		Panel-inner Door, Refr		Appelez-nous	-
4	5303281833		Rack-door		Appelez-nous	-
5	5303281866		Support-door Rack, Rh		Appelez-nous	-
6	5303281867		Support-door Rack, Lh		Appelez-nous	-
7	5303281865		Door-dairy		Appelez-nous	-
8	5303281834		Rack-door		Appelez-nous	-
9	5303274588		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917078		Panel-frzr Door, White		Appelez-nous	-
12	5303273164		Nameplate Assy		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917075		Panel-refr Door, White		Appelez-nous	-
16	5318755101		Trim-door		Appelez-nous	-
18	5303274256		Handle-door		Appelez-nous	-
18	5303274255		Handle-door		Appelez-nous	-
21	5308013645		Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2		Appelez-nous	-
22	3206153		Bearing-hinge (8)		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
4A	5303281835		Rack-door		Appelez-nous	-
5A	5303274518		Support-door Rack Rh				$ 17.33
6A	5303274519		Support-door Rack Lh				$ 47.04

    View Diagram in Separate Window       Print Part List
