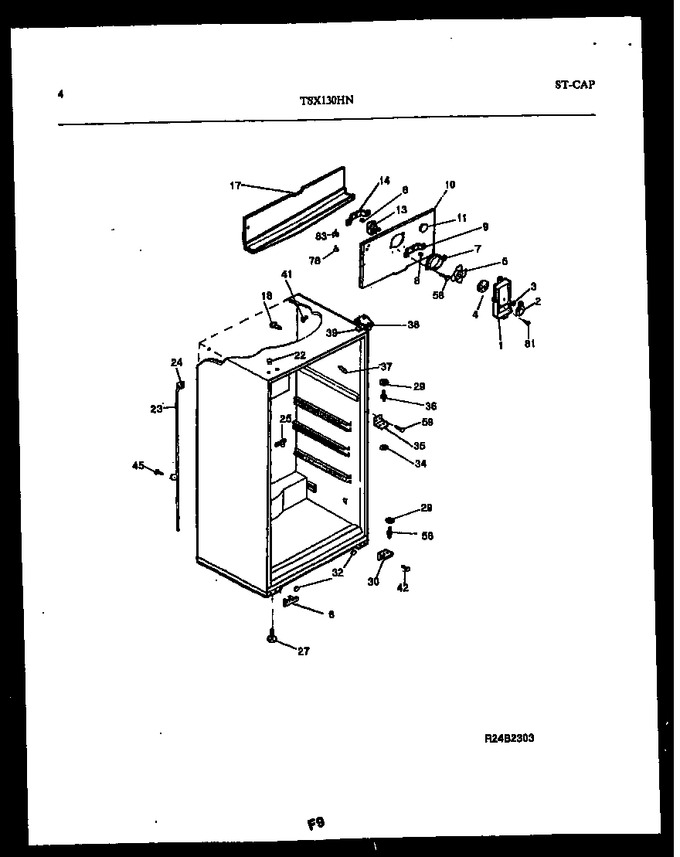

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303281863		Cover-fan		Appelez-nous	-
2	5308000081		Knob - Damper Control				$ 36.02
3	5303001028		Nut, Push		Appelez-nous	-
4	3206110		Damper-fan Cover				$ 53.08
5	5308000010		Fan Blade			Immediately	$ 49.03
6	3206135		Cover-lwr Hng Screw		Appelez-nous	-
7	5308000124		Ring-fan Orifice				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
10	5303270917		Cover-evap Coil		Appelez-nous	-
10	5303209636		Screw-coil Cover, Phl Hd Spc Trus, 8-15a X 5/8 (non-illustrated)		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
13	5300158289		Motor, Fan			Immediately	$ 149.94
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
17	3206146		Trough-drain		Appelez-nous	-
18	5308000097		Support, Evap Cover, (2)		Appelez-nous	-
22	5303001678		Plug-button, Wheat, Upr Hinge Holes		Appelez-nous	-
23	5303272327		Tube-drain, W/seal Ring		Appelez-nous	-
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	5303001361		Pin, Push, Drain Spout (2) (non-illustrated)		Appelez-nous	-
25	5308000056		Spout-drain Tube				$ 11.66
27	3206141		Screw-leveling				$ 11.50
29	5308000007		Washer, .34 X .62 X .05, Nylon		Appelez-nous	-
30	3206136		Bracket-lower Hinge		Appelez-nous	-
32	215217702		Plug-button, Cabinet Base, (2)		Appelez-nous	-
34	5308000186		Washer, .34 X .62 X .10, Nylon			Immediately	$ 6.02
35	5303001369		Bracket-ctr Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5303202338		Trim, Cabinet Corner, Wheat (4)		Appelez-nous	-
38	3206100		Bracket-upper Hinge		Appelez-nous	-
38	241710601		Screw   (Replaces: 5303001479)				$ 13.46
38	5308012296		Tapping Plate, Upper Hinge, (2) (non-illustrated)				$ 47.44
39	5303001037		Shim - Upper Hinge				$ 12.39
41	5304500407		Grommet, Shelf Mtg, Lh (non-illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
41	5304509705		Grommet, Shelf Mtg   (Replaces: 5303001609)				$ 10.01
42	3206143		Screw-lwr Hinge Mtg, Hex Washer Hd, 1/4-20 X 5/8, (4)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
56	5303001321		Pin-lower Hinge				$ 17.25
58	5308002748		Screw		Appelez-nous	-
59	3206134		Screw-hinge/mullion, Acorn Hx Wsh Hd, 10-24(23) X 1		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
25528	5303210622		Pad-rear Base		Appelez-nous	-
