Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	F300592		Support-front Rh (3)		Appelez-nous	-
1	F300590		Support-front Lh (3)		Appelez-nous	-
2	F56640		Spcr-top Grid Rear		Appelez-nous	-
2	F81445		Spcr-topgrid Front (2)		Appelez-nous	-
3	F117447		Support Rear (6)		Appelez-nous	-
4	5308010744		Heat Exchanger		Appelez-nous	-
5	F122960		Top Grid		Appelez-nous	-
6	F122961		First Shelf		Appelez-nous	-
7	F125272		Second Shelf		Appelez-nous	-
8	F122963		Bottom Shelf		Appelez-nous	-
9	F126260		Screw-top Grid (3)		Appelez-nous	-
10	08000027		Drier		Appelez-nous	-
11	F59555		Grommet (4)		Appelez-nous	-
12	F59556		Sleeve (3)		Appelez-nous	-
13	F59211		Screw (3)		Appelez-nous	-
14	F124042		Condenser (not Original Equipment. Service Replacement O		Appelez-nous	-
15	F301710		Compressor		Appelez-nous	-
16	5303007171		Relay		Appelez-nous	-
17	3017626		Overload		Appelez-nous	-
18	5303006411		Cover, Terminal		Appelez-nous	-
19	5303006412		Clamp Cover		Appelez-nous	-
20	F95424		Ground Wire		Appelez-nous	-
21	F99483		Screw (3)		Appelez-nous	-
22	F116027		Clamp-cord		Appelez-nous	-
23	F125347		Ground Wire		Appelez-nous	-
24	F128536		Harness-w/ Power Cord		Appelez-nous	-
25	F126974		Cold-control		Appelez-nous	-
26	F112321		Retainer-harness (3)		Appelez-nous	-
27	F99483		Screw-ground Wire		Appelez-nous	-
28	F96850		Clamp-capillary		Appelez-nous	-
29	F52943		Screw-clamp		Appelez-nous	-
30	F129728		Sleeve		Appelez-nous	-
31	F111846		Clip (2)		Appelez-nous	-
32	F300389		Front-shelf (3)		Appelez-nous	-
33	F127717		Knob-control		Appelez-nous	-
34	F128633		Housing-control		Appelez-nous	-
35	F55160		Screw-cntrl To Cover (2)		Appelez-nous	-
36	F50149		Screw-cover To Liner		Appelez-nous	-
37	F110410		Screw Knob		Appelez-nous	-
38	08037935		Screw		Appelez-nous	-
39	Q86065		Power Cord		Appelez-nous	-

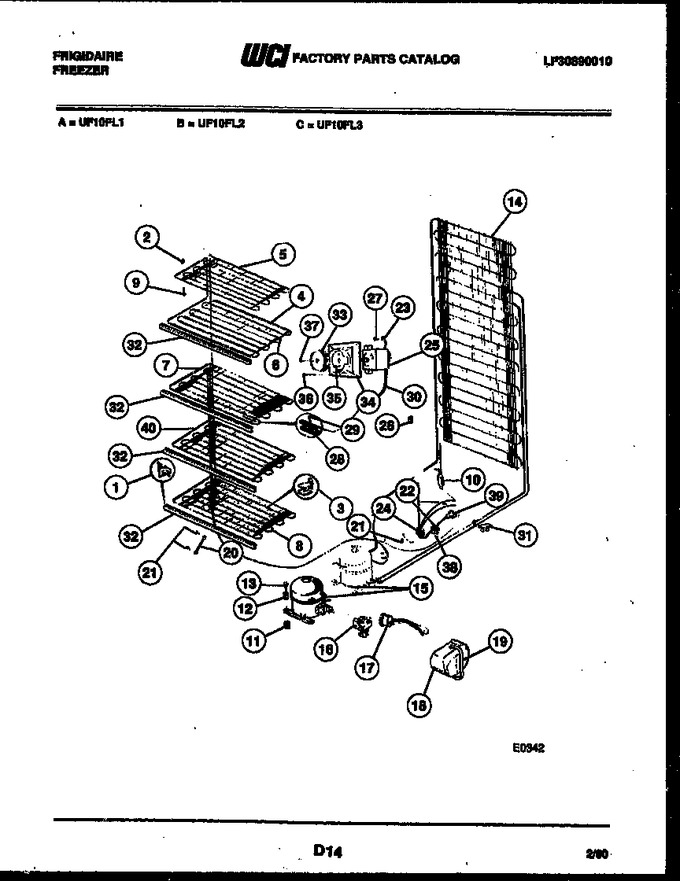

    View Diagram in Separate Window       Print Part List
