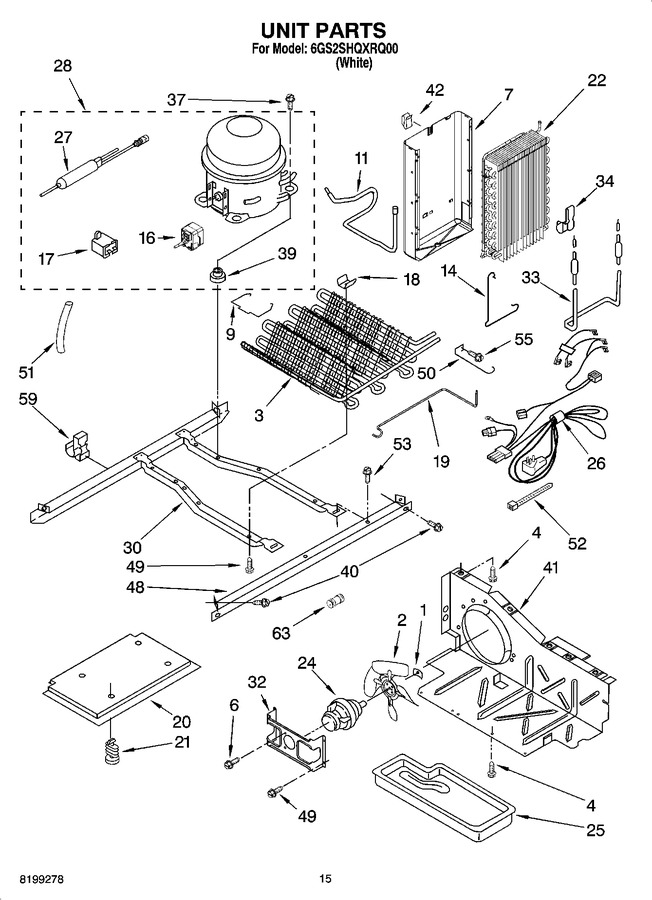

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP486692 | Speed Nut (Replaces: 486692) |
|
$ 7.59 | |||||
| 2 | 2190685 | Fan, Blade |
|
$ 52.00 | |||||
| 3 | 2324712 | Condenser Assembly (Replaces: 2223953) |
|
$ 291.11 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 6 | 681390 | Screw (Replaces: 489099) |
|
$ 12.34 | |||||
| 7 | 2304288 | Heat Shield And Drain Pan |
|
- | |||||
| 9 | 2302129 | Strap, Bale |
|
- | |||||
| 11 | 2205764 | Tube Suction |
|
$ 80.26 | |||||
| 14 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 16 | 2303344 | Start-device, Combination (start Relay And Overload) For Production & Srvc Compressor |
|
- | |||||
| 17 | 2321245 | Capacitor (Replaces: 2254217) |
|
- | |||||
| 18 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 17.44 | |||||
| 19 | 2261599 | Tube, Condenser To Heat Loop |
|
$ 219.30 | |||||
| 20 | 2200465 | Unit Cover, Bottom |
|
- | |||||
| 21 | 489396 | Clip |
|
$ 10.13 | |||||
| 22 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 321.16 | ||||
| 24 | 8201703 | Motor, Fan (Replaces: 2188539) |
|
$ 334.53 | |||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 142.34 | ||||
| 26 | 2187932 | Harness, Unit |
|
- | |||||
| 27 | W10843121 | Drier (production) (Replaces: 2199167) |
|
Immediately | $ 51.42 | ||||
| 27 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 51.42 | ||||
| 28 | W10183407 | Compressor (includes Items 16, 17, 27 & 39) (also Order 876765 Tube Kit) (Replaces: 2303342) |
|
$ 392.05 | |||||
| 30 | 2304903 | Unit Mounting Frame (Replaces: 2160501) |
|
$ 220.21 | |||||
| 32 | WP2181929 | Bracket, Fan Motor (Replaces: 2181929) |
|
$ 11.64 | |||||
| 33 | WP2313330 | Heater, Defrost (Replaces: 2313330) |
|
$ 146.82 | |||||
| 34 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 37 | 876811 | Screw (Replaces: 489373) |
|
$ 7.01 | |||||
| 39 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.01 | |||||
| 39 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.57 | |||||
| 40 | 489340 | Screw |
|
- | |||||
| 41 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 91.08 | |||||
| 42 | 2155547 | Clip, Heat |
|
- | |||||
| 48 | 2149718 | Unit Mounting Rail |
|
- | |||||
| 49 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.92 | |||||
| 50 | 1105612 | Guard, Fan |
|
$ 38.35 | |||||
| 51 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 19.19 | ||||
| 52 | WPW10339879 | Wire Tie (Replaces: 2172840) |
|
$ 7.47 | |||||
| 53 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 55 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 59 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 63 | N/A | And Optional Parts Not Included |
|
- | |||||
| 63 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 63 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | ||||
| 63 | WP4373559 | Connector, Water Tube (Replaces: 2209709) |
|
$ 73.10 | |||||
| 63 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| 63 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 63 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 63 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 63 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 |
