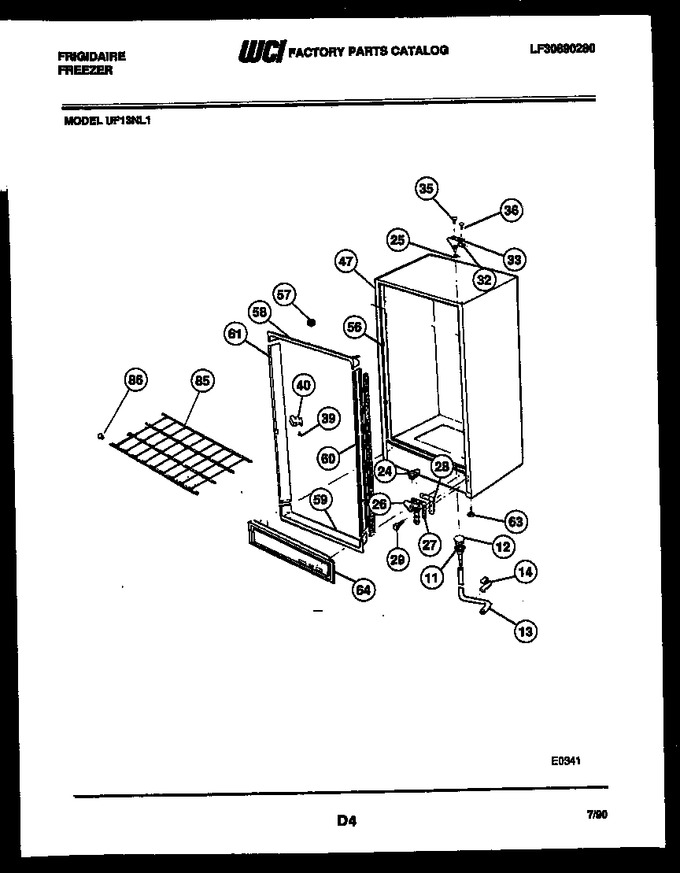

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 12 | 5306593887 | Plug-drain |
|
- | |||||
| 13 | 5308037944 | Hose Drain |
|
- | |||||
| 14 | 06593405 | Clamp |
|
- | |||||
| 24 | 5303210424 | Ramp, Door Closer |
|
- | |||||
| 25 | F57523 | Bearing, Hinge (3) |
|
- | |||||
| 26 | 5306594529 | Hinge Bottom |
|
$ 10.34 | |||||
| 27 | 5303207296 | Spacer |
|
- | |||||
| 28 | 06594550 | Plate |
|
- | |||||
| 29 | 154518001 | Screw-hinge (3) (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 32 | 06593894 | Plate |
|
- | |||||
| 33 | 5308037946 | Hinge-top |
|
$ 56.91 | |||||
| 35 | 06593898 | Screw |
|
- | |||||
| 36 | 08037848 | Screw-hinge-rear |
|
- | |||||
| 47 | 06594525 | Insulation |
|
- | |||||
| 56 | 06594680 | Clip, Breaker |
|
- | |||||
| 57 | 08037937 | Spacer-top Breaker (2) |
|
- | |||||
| 58 | 5308005501 | Breaker Top |
|
- | |||||
| 59 | 5308005502 | Breaker Bottom |
|
- | |||||
| 60 | 08005503 | Breaker-hinge |
|
- | |||||
| 61 | 08005504 | Breaker-lock Side |
|
- | |||||
| 63 | 5303205540 | Leveling Leg (4) |
|
- | |||||
| 85 | 08005505 | Trivet |
|
- | |||||
| 86 | 06599916 | Bumpers Trivit (8) |
|
- |
