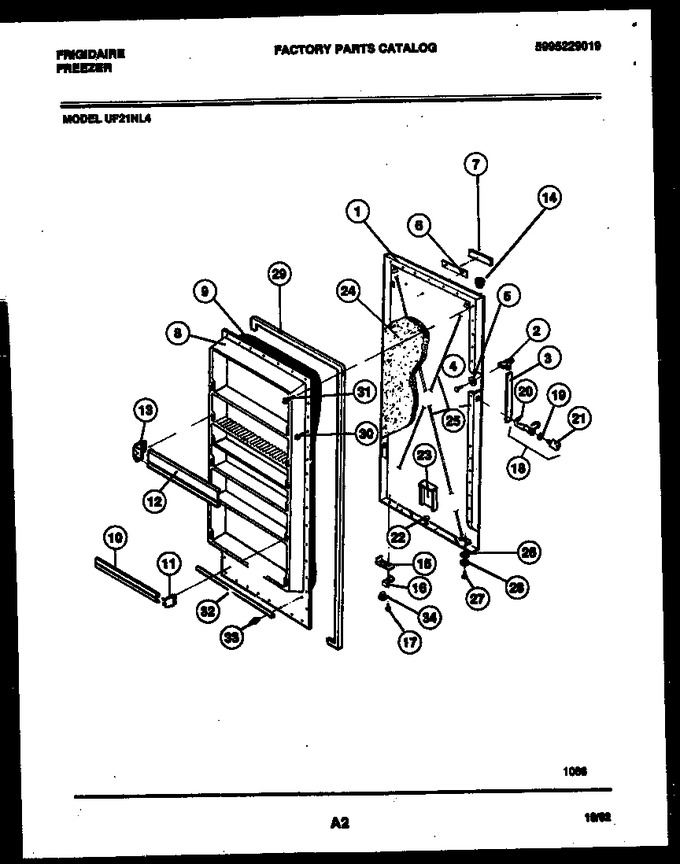

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216011603		Panel-door (almd)		Appelez-nous	-
2	5308016581		End Cap (2)				$ 18.45
3	3016894		Grip Handle		Appelez-nous	-
4	08006582		Screw Handle (2)		Appelez-nous	-
5	08016593		Washer Handle Screw		Appelez-nous	-
6	08037409		Nameplate Bezel		Appelez-nous	-
7	08037949		Insert Nameplate		Appelez-nous	-
8	216012801		Panel-inner (white)		Appelez-nous	-
9	09950831		Insulation		Appelez-nous	-
10	3017748		Shelf Front Narrow (2)		Appelez-nous	-
11	5303925377		End Cap Lh Narrow (2)   (Replaces: 5308015542)			Immediately	$ 46.07
11	5303925377		End Cap Rh Narrow (2)   (Replaces: 5308015541)			Immediately	$ 46.07
12	08016386		Shelf Front Wide (4)		Appelez-nous	-
13	5308015540		End Cap Lh Wide (4)		Appelez-nous	-
13	5308015539		End Cap Rh Wide (4)		Appelez-nous	-
14	5306593364		Bearing-top		Appelez-nous	-
15	5300091170		Reinforcement, Door Stop		Appelez-nous	-
16	08016354		Stop-door				$ 36.07
17	08005520		Screw-door Stop		Appelez-nous	-
18	5303925107		Lock-complete		Appelez-nous	-
19	5300114366		Washer-lock		Appelez-nous	-
20	3202005		Lock Hook		Appelez-nous	-
21	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
22	5309950074		Valve Breather (2)				$ 12.48
23	5300128421		Air Duct Breather		Appelez-nous	-
24	5303007739		Insulation, Door		Appelez-nous	-
25	08037986		Wire, Adjusting (2)		Appelez-nous	-
26	05879859		Bracket		Appelez-nous	-
27	5300057906		Screw, Bracket (2)		Appelez-nous	-
28	09950839		Washer, Bracket (2)		Appelez-nous	-
29	3206262		Gasket Door (brown)		Appelez-nous	-
30	216858001		Screw Door Panel (26)   (Replaces: 5303161215)			Immediately	$ 10.85
31	216022800		Screw, Panel (24)		Appelez-nous	-
32	5308016356		Gasket		Appelez-nous	-
33	5303091422		Rivet-gasket (5)		Appelez-nous	-
34	5303210403		Bearing, Bottom		Appelez-nous	-
