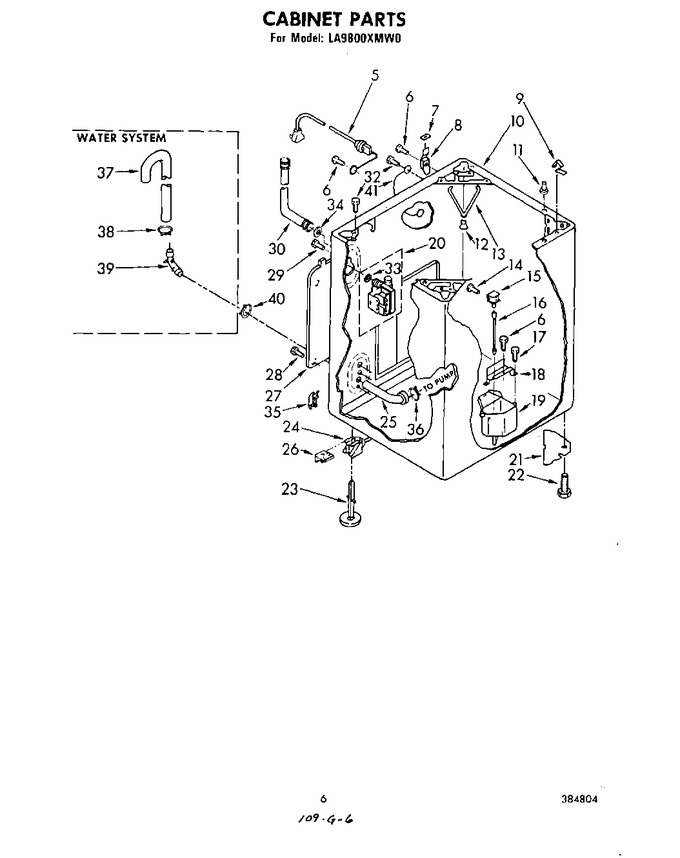

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	92667		Cord, Power		Appelez-nous	-
6	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
7	18849		Pad, Hinge (2)				$ 18.13
8	92657		Hinge, L.h.		Appelez-nous	-
8	18775		Hinge, R.h.		Appelez-nous	-
9	WP18776		Lock, Front Top   (Replaces: 18776)			Immediately	$ 11.41
10	384797		Cabinet (golden Harvest)		Appelez-nous	-
10	386478		Cabinet (platinum)		Appelez-nous	-
10	386477		Cabinet (toast)		Appelez-nous	-
10	384793		Cabinet (white)		Appelez-nous	-
10	384794		Cabinet (almond)		Appelez-nous	-
11	98669		Locator, Top				$ 12.03
12	358336		Snubber			Immediately	$ 4.80
13	358336		Spring, Snubber   (Replaces: 357977)			Immediately	$ 4.80
14	96141		Screw, 10-16 X 5/16		Appelez-nous	-
15	87170		Solenoid (alternate)		Appelez-nous	-
15	88464		Solenoid (alternate)		Appelez-nous	-
16	82506		Rod & Stopper				$ 6.96
17	WP98165		Screw, 8-18 X 5/8   (Replaces: 98165)				$ 7.20
18	93492		Bracket, Dispenser		Appelez-nous	-
19	95916		Reservoir		Appelez-nous	-
20	358277		Valve, Mixing (alt.)			Immediately	$ 78.87
20	660749		Valve, Mixing		Appelez-nous	-
20	358971		Valve, Mixing (alt.) (serviced Only As Complete Assemblies)		Appelez-nous	-
21	356459		Plate, Gusset (2)		Appelez-nous	-
22	WP367594		Foot, Front (2)   (Replaces: 367594)			Immediately	$ 18.46
23	WP358594		Foot, Rear (2)   (Replaces: 358594)				$ 12.24
24	359059		Link, Leveling		Appelez-nous	-
25	358560		Hose, Pump To Cabinet		Appelez-nous	-
26	WP359364		Clip, Leveling Mechanism (2)   (Replaces: 359364)			Immediately	$ 7.06
27	85279		Panel, Rear		Appelez-nous	-
28	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
29	WP3351614		Screw, 10 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 6.26
30	WP89503		Hose, Inlet (2)   (Replaces: 81339)			Immediately	$ 21.68
32	WP681414		Screw, 10-16 X 1/2   (Replaces: 359262)			Immediately	$ 7.07
33	WP96160		Screen, Filter   (Replaces: 96160)				$ 10.54
34	WP16123		Washer, Rubber (4)   (Replaces: 16123)				$ 6.93
35	354179		Plug, Cabinet		Appelez-nous	-
36	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
37	WP96743		Hose, Drain   (Replaces: 96743)				$ 90.93
38	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
39	95440		Connector, Hose				$ 22.55
40	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 7.55
41	364089		Wire, Ground		Appelez-nous	-
