SELECT A DIAGRAM

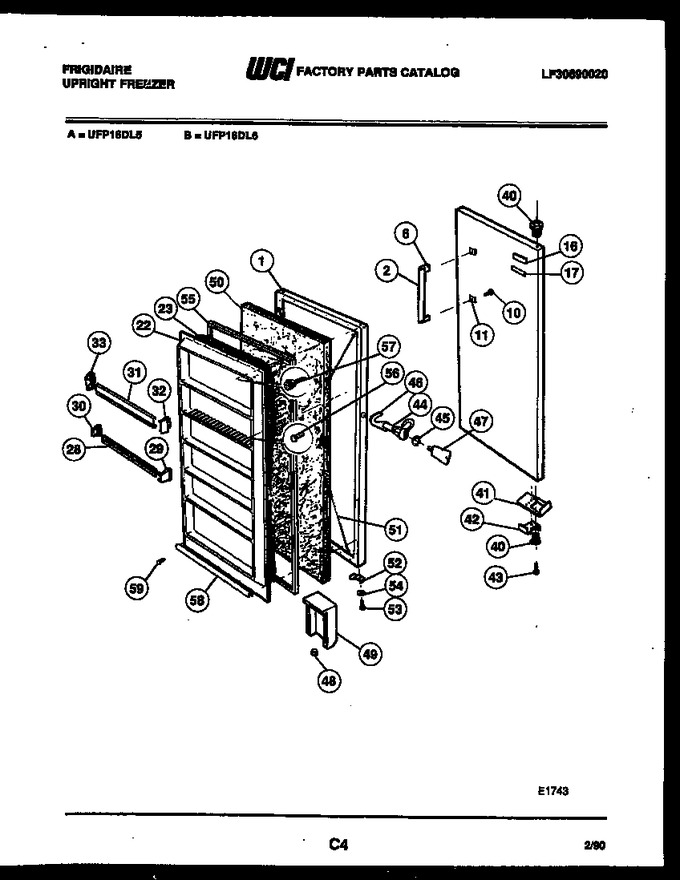

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308037414		Door Shell		Appelez-nous	-
6	5308016581		Handle End Cap (2)				$ 18.45
7	3016894		Grip Handle		Appelez-nous	-
10	09418597		Screw Handle (2)		Appelez-nous	-
11	08016593		Washer Screw (2)		Appelez-nous	-
16	08037409		Nameplate Bezel		Appelez-nous	-
17	08037949		Insert Nameplate		Appelez-nous	-
22	5308013199		Panel-inner		Appelez-nous	-
23	06594525		Insulation		Appelez-nous	-
28	3017747		Shelf Front Narrow (4)		Appelez-nous	-
29	5303925377		End Cap Rh Narrow (4)   (Replaces: 5308015541)			Immediately	$ 46.07
30	5303925377		End Cap Lh Narrow (4)   (Replaces: 5308015542)			Immediately	$ 46.07
31	3017744		Shelf-front Wide		Appelez-nous	-
32	5308015539		End Cap Rh Wide		Appelez-nous	-
33	5308015540		End Cap Lh Wide		Appelez-nous	-
40	08016490		Bearing-bottom		Appelez-nous	-
40	5306593364		Bearing-top		Appelez-nous	-
41	F91170		Bracket-door Stop		Appelez-nous	-
42	06593882		Door Stop		Appelez-nous	-
43	08005520		Screw-door Stop		Appelez-nous	-
44	5300190358		Lock-complete		Appelez-nous	-
45	5300114366		Sealing Washer Lock		Appelez-nous	-
46	3202005		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve Breather (2)				$ 12.48
49	5300128421		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037415		Wire, Adjusting (2)		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	F57906		Screw, Bracket (2)		Appelez-nous	-
54	09950839		Washer, Bracket (2)		Appelez-nous	-
55	5308016361		Gasket Door		Appelez-nous	-
56	216858001		Screw, Panel (22)   (Replaces: 5303161215)			Immediately	$ 10.85
57	08009384		Screw Panel (24)		Appelez-nous	-
58	5308016356		Gasket		Appelez-nous	-
59	5303091422		Rivet-gasket (5)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
