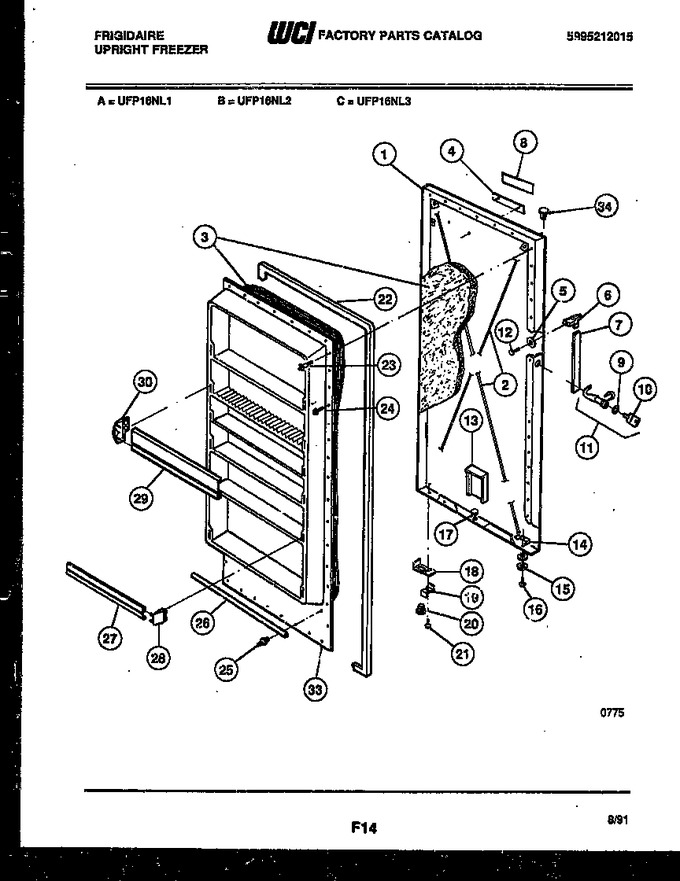

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308037414		Panel-outer Dr-almd		Appelez-nous	-
2	08037415		Rod-support		Appelez-nous	-
3	5303007739		Insulation		Appelez-nous	-
4	08037409		Nameplate		Appelez-nous	-
5	08016593		Washer (2)		Appelez-nous	-
6	5308016581		Support Handle (2)				$ 18.45
7	3016894		Handle		Appelez-nous	-
8	08037949		Insert Nameplate		Appelez-nous	-
9	09948648		Washer-seal		Appelez-nous	-
10	297147700		Key   (Replaces: 5308037402)			Immediately	$ 7.57
11	5300190358		Lock-complete		Appelez-nous	-
12	09418597		Screw (2)		Appelez-nous	-
13	5300128421		Vent		Appelez-nous	-
14	05879859		Bracket		Appelez-nous	-
15	09950839		Washer (2)		Appelez-nous	-
16	05879860		Screw		Appelez-nous	-
17	5309950074		Vent				$ 12.48
18	F91170		Reinforcement		Appelez-nous	-
19	06593882		Door Stop		Appelez-nous	-
20	08016490		Bearing-bottom		Appelez-nous	-
21	08005520		Screw-door Stop		Appelez-nous	-
22	3206252		Gasket-door-brown		Appelez-nous	-
23	08009384		Screw (24)		Appelez-nous	-
24	216858001		Screw (22)   (Replaces: 5303161215)			Immediately	$ 10.85
25	5303091422		Clip (5)		Appelez-nous	-
26	5308016356		Gasket		Appelez-nous	-
27	3017747		Front (4)		Appelez-nous	-
28	5303925377		Insert Lh (4)   (Replaces: 5308015542)			Immediately	$ 46.07
28	5303925377		Insert Rh (4)   (Replaces: 5308015541)			Immediately	$ 46.07
29	3017744		Front (1)		Appelez-nous	-
30	5308015539		Insert Rh (1)		Appelez-nous	-
33	5308013199		Panel Inner Door-white		Appelez-nous	-
34	5306593364		Bearing-top		Appelez-nous	-
30A	5308015540		Insert Lh (1)		Appelez-nous	-
30B	5303208463		Insulation Foam Kit Door (non-illustrated)		Appelez-nous	-
