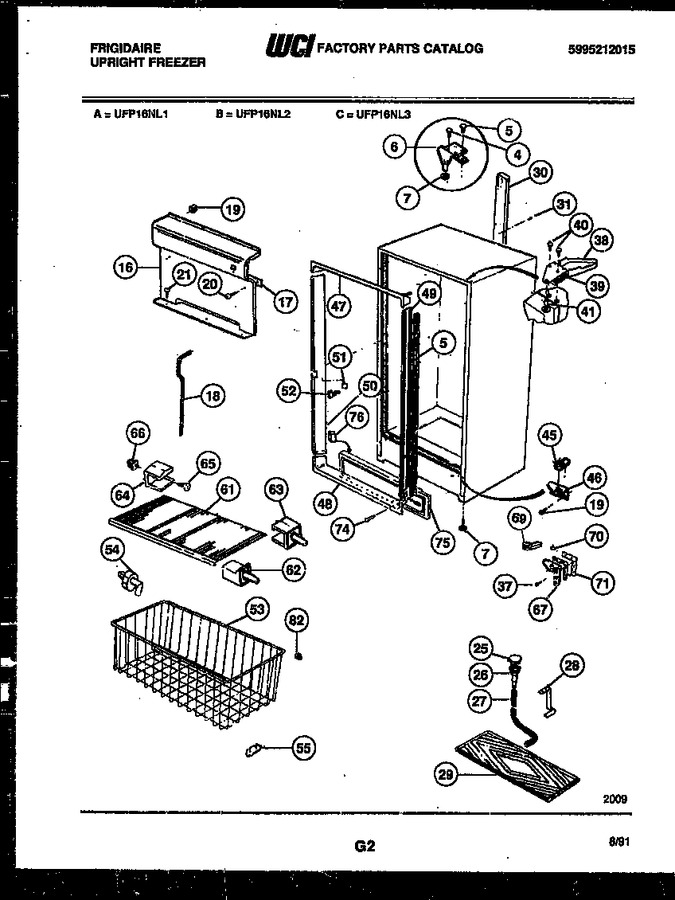

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 09950831 | Insulation |
|
- | |||||
| 7 | 5303205540 | Leg Leveler |
|
- | |||||
| 16 | 06599550 | Panel-evaporator |
|
- | |||||
| 17 | 06599547 | Spacer |
|
- | |||||
| 18 | 5306599551 | Gasket-panel |
|
- | |||||
| 19 | 09948978 | Insert Nut (6) |
|
- | |||||
| 20 | 216858001 | Screw-pnl To Liner (6) (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 21 | 5303161233 | Screw-pnl To Evap (3) |
|
- | |||||
| 25 | 216503100 | Screen, Drain (Replaces: 5308037403) |
|
$ 62.17 | |||||
| 26 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 27 | 08037416 | Hose |
|
- | |||||
| 28 | 06594637 | Clip |
|
- | |||||
| 29 | 5308016387 | Defrost Pan |
|
- | |||||
| 30 | F91583-S | Guard |
|
- | |||||
| 31 | 06594661 | Screw |
|
- | |||||
| 37 | 154518001 | Screw-bottom Hinge (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 42 | 06593898 | Screw |
|
- | |||||
| 43 | 08037848 | Screw-hinge-rear |
|
- | |||||
| 44 | 5308037946 | Hinge-top |
|
$ 56.91 | |||||
| 45 | 5300057523 | Bearing-top |
|
- | |||||
| 46 | 06594680 | Clip, Breaker |
|
- | |||||
| 47 | 06594559 | Breaker-top |
|
- | |||||
| 48 | 06594560 | Breaker-bottom |
|
- | |||||
| 49 | 5308037994 | Breaker-hinge Side |
|
- | |||||
| 50 | 06599857 | Breaker-lock Side |
|
- | |||||
| 51 | 5309949966 | Latch-catch |
|
- | |||||
| 52 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 53 | 08010201 | Basket |
|
- | |||||
| 54 | 09948791 | Stop, Basket |
|
- | |||||
| 55 | 08009560 | Glide Basket (4) |
|
$ 35.25 | |||||
| 61 | 08037963 | Shelf-upper (3) |
|
- | |||||
| 62 | 5306594706 | Support, Front, Rh (5) |
|
- | |||||
| 63 | 5306594584 | Support, Rear (8) |
|
$ 19.80 | |||||
| 64 | 5306594585 | Support, Rear (2) |
|
- | |||||
| 65 | 08005520 | Screw-door Stop |
|
- | |||||
| 67 | 5306594549 | Hinge-bottom |
|
- | |||||
| 68 | 154518001 | Screw-hinge (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 69 | F000900253 | Closer Door |
|
- | |||||
| 70 | 5300057523 | Bearing-bottom |
|
- | |||||
| 71 | 5303207296 | Gasket |
|
- | |||||
| 74 | 5309950066 | Pin-toe Grille (2) |
|
- | |||||
| 75 | 08037840 | Toe Grille |
|
- | |||||
| 76 | 5300118003 | Bumper |
|
- | |||||
| 82 | 5305878546 | Bumper Basket (2) |
|
$ 7.23 | |||||
| 55A | F129805 | Spacers-basket (4) (non-illustrated) |
|
- | |||||
| 61A | 08037964 | Shelf-lower (1) |
|
- | |||||
| 62A | 5306594707 | Support, Front, Lh (5) |
|
- |
