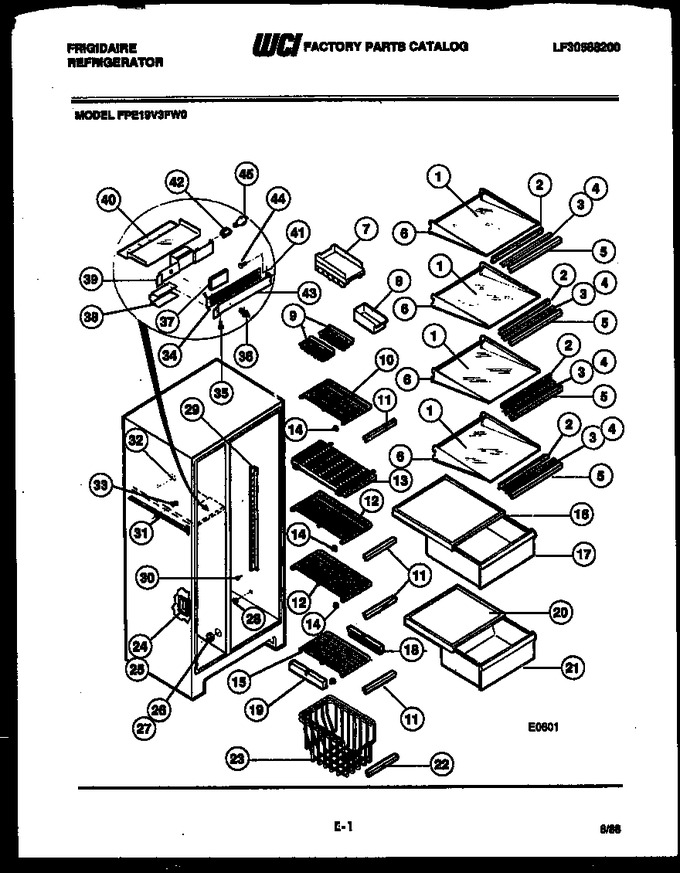

SELECT A DIAGRAM

01 - Cover


02 - Door Parts


03 - Cabinet Parts


04 - Interior Parts


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	3017673		Heat Exchanger		Appelez-nous	-
3	06594625		Insulation-heat Exchanger		Appelez-nous	-
4	06594629		Grommet		Appelez-nous	-
5	08005187		Sleeve-evaporator Tubing		Appelez-nous	-
6	3016814		Switch-termination		Appelez-nous	-
7	06594601		Bracket, Control				$ 17.64
8	06594653		Washer		Appelez-nous	-
9	08000455		Insulator		Appelez-nous	-
10	05878562		Clamp		Appelez-nous	-
11	06599531		Seal Rh		Appelez-nous	-
12	3200705		Evaporator		Appelez-nous	-
13	06599536		Clip, Heater		Appelez-nous	-
14	06599544		Support, Evaporator		Appelez-nous	-
15	08013198		Spacer (2)		Appelez-nous	-
16	06594740		Heater Repair Kit		Appelez-nous	-
17	06599535		Heater Defrost		Appelez-nous	-
18	3200707		Air Seal, Lh		Appelez-nous	-
19	09949285		Clamp Cover		Appelez-nous	-
20	3006411		Cover		Appelez-nous	-
21	3017753		Relay		Appelez-nous	-
22	3200957		Overload		Appelez-nous	-
23	08950230		Compressor		Appelez-nous	-
24	08002681		Grommet (4)		Appelez-nous	-
25	06594529		Sleeve (3)		Appelez-nous	-
26	08002679		Screw (3)		Appelez-nous	-
27	05878556		Clip, Compressor Wire		Appelez-nous	-
28	08000027		Drier		Appelez-nous	-
29	08016376		Harness With Power Cord		Appelez-nous	-
30	Q86065		Power Cord		Appelez-nous	-
31	06599553		Clip, Wires		Appelez-nous	-
32	08016580		Bracket, Timer		Appelez-nous	-
33	08037967		Timer		Appelez-nous	-
34	F128777		Retainer (not Original Equipment--customer Purchase Opti		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
