SELECT A DIAGRAM

02 - Top And Cabinet, Lit/optional


03 - Controls And Rear Panel


04 - Agitator, Basket And Tub


05 - Miscellaneous


06 - Brake, Clutch, Gearcase, Motor And Pump


07 - Machine Base


08 - Brake And Drive Tube


09 - Gearcase


10 - Wiring Harness


11 - Water System

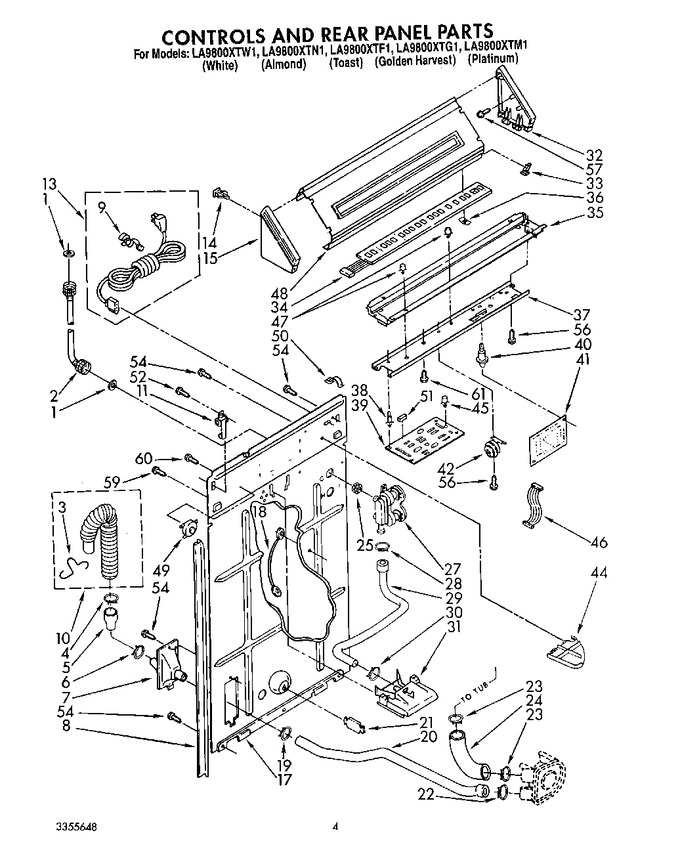

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4)   (Replaces: 16123)				$ 6.93
2	WP89503		Hose, Water Inlet (2)   (Replaces: 660028)			Immediately	$ 21.68
2	WP89503		(alt.)   (Replaces: 81339)			Immediately	$ 21.68
2	WP89503		(alt.)   (Replaces: 385057)			Immediately	$ 21.68
2	WP89503		(alt.)   (Replaces: 366108)			Immediately	$ 21.68
3	3350222		Retainer, Wire				$ 34.76
4	WP616099		Clamp, Hose   (Replaces: 371504)			Immediately	$ 7.03
5	WP384496		Coupling, Hose   (Replaces: 384496)				$ 77.48
6	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
7	WPW10358149		Connector, Drain   (Replaces: 3355497)			Immediately	$ 43.34
8	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
9	W11733005		Clip, Strain Relief   (Replaces: 63848)				$ 11.64
10	285664		Hose, Corrugated Plastic Drain (5-1/2 Ft.)   (Replaces: 387325)			Immediately	$ 33.20
10	285666		Hose, Corrugated Plastic Drain (10 Ft.) (not Included)   (Replaces: 388418)			Immediately	$ 56.11
11	387402		Hinge, Console (2)				$ 5.84
13	W10820044		Cord, Power   (Replaces: 62734)				$ 128.46
14	689559		Nut, Push-in (2)		Appelez-nous	-
15	63789		Cap, End (l.h.)		Appelez-nous	-
17	3348430		Panel, Rear		Appelez-nous	-
18	364089		Wire, Ground		Appelez-nous	-
19	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
20	WP3348552		Hose, Pump To Drain Connector   (Replaces: 3348552)				$ 76.37
21	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
22	WP285655		(alt.)   (Replaces: 370447)			Immediately	$ 7.55
22	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 7.55
22	WP285655		(alt.)   (Replaces: 353097)			Immediately	$ 7.55
22	WP285655		(alt.)   (Replaces: 272858)			Immediately	$ 7.55
23	WP371502		Clamp, Hose   (Replaces: 371502)				$ 10.38
24	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 24.01
25	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 10.54
27	285805		Valve, Mixing   (Replaces: 358992)			Immediately	$ 49.57
28	WP596669		Clamp, Hose   (Replaces: 660632)			Immediately	$ 7.56
29	WP3357328		Hose, Vacuum Break   (Replaces: 62662)			Immediately	$ 22.30
30	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
31	WP3360977		Vacuum Break   (Replaces: 387606)			Immediately	$ 45.41
32	63795		Cap, End. (r.h.)				$ 14.10
33	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
34	3407025		Touch Module		Appelez-nous	-
35	387861		Bracket, Control		Appelez-nous	-
36	445189		Nut, Push-on Spring		Appelez-nous	-
37	387857		Bracket, Console		Appelez-nous	-
38	313087		Support, Circuit Board (4)		Appelez-nous	-
39	3407003		Microcomputer		Appelez-nous	-
40	3349370		Stand-off (4) (relay Board Mounting)		Appelez-nous	-
41	3407048		Power Supply		Appelez-nous	-
42	64195		Switch, Water Level		Appelez-nous	-
44	3348424		Sheild, Suds		Appelez-nous	-
45	772566		Support, Circuit Board		Appelez-nous	-
46	3407059		Jumper, Board To Board		Appelez-nous	-
47	3348413		Support, Circuit Board (3)		Appelez-nous	-
48	3348431		Panel And Bezel, Control		Appelez-nous	-
49	3347639		Speaker		Appelez-nous	-
50	WP98997		Clip, Hose Routing   (Replaces: 98997)				$ 9.98
51	3407005		Connector, Two Terminal		Appelez-nous	-
52	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.08
54	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
56	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
57	355326		Screw, 13-16 X 5/8		Appelez-nous	-
59	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
60	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
61	299885		Wire, Splicing 240 Volt		Appelez-nous	-
61	WP3351614		Screw, Ground 10-24 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
61	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64

    View Diagram in Separate Window       Print Part List
