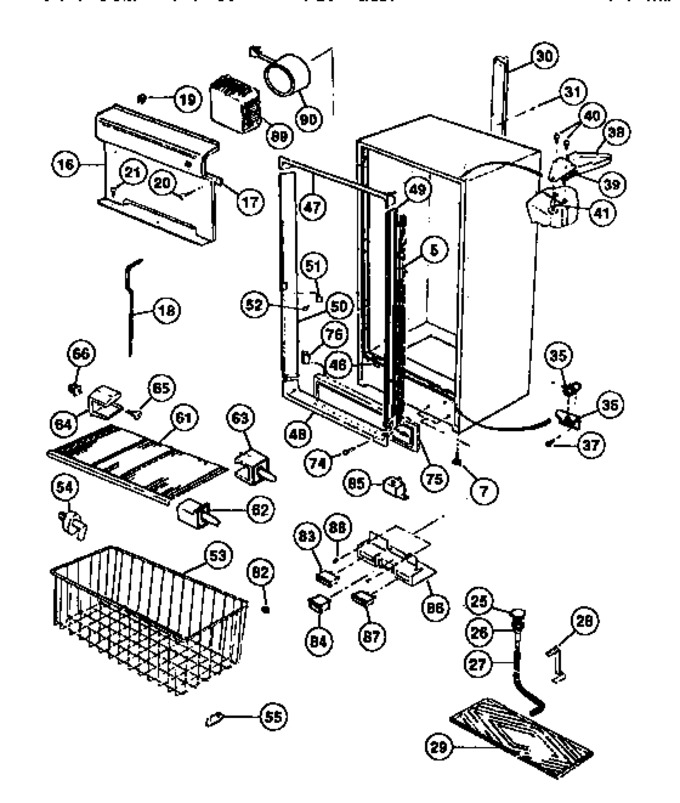

SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Interior


04 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	09950831		Insulation		Appelez-nous	-
7	5303205540		Leg Leveler (4)		Appelez-nous	-
16	06599559		Panel-evaporator		Appelez-nous	-
17	06599547		Spacer		Appelez-nous	-
18	5306599551		Gasket-panel		Appelez-nous	-
19	09948978		Insert Nut (6)		Appelez-nous	-
20	216858001		Screw-panel To Liner (6)   (Replaces: 5303161215)			Immediately	$ 10.85
21	5303161233		Screw-panel To Evaporator (3)		Appelez-nous	-
25	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
26	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
27	08037416		Hose		Appelez-nous	-
28	06594637		Clip		Appelez-nous	-
29	5308016387		Defrost Drain Pan		Appelez-nous	-
30	F91583-S		Guard		Appelez-nous	-
31	06594661		Screw		Appelez-nous	-
35	5303210424		Closer-door		Appelez-nous	-
36	5303210383		Hinge, Bottom		Appelez-nous	-
37	154518001		Screw-hinge   (Replaces: 5303205738)				$ 10.54
38	5303210878		Cover-hinge-almd		Appelez-nous	-
39	5303210385		Hinge Top		Appelez-nous	-
40	5303210386		Screw-hinge		Appelez-nous	-
41	08037937		Spacer-top Breaker (2) (not Illustrated)		Appelez-nous	-
41	5303210387		Pin-hinge		Appelez-nous	-
46	06594680		Clip, Breaker		Appelez-nous	-
47	06594561		Breaker, Top		Appelez-nous	-
48	06594562		Breaker, Bottom		Appelez-nous	-
49	F300737		Breaker-hinge Side		Appelez-nous	-
50	06599858		Breaker-lock Side		Appelez-nous	-
51	5309949966		Latch-catch		Appelez-nous	-
52	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
53	08010202		Basket		Appelez-nous	-
54	09948791		Stop, Basket		Appelez-nous	-
55	08009560		Glide Basket (4)				$ 35.25
55	F129805		Spacers-basket (4) (not Illustrated)		Appelez-nous	-
61	5308037997		Shelf-lower (2)		Appelez-nous	-
61	5308037996		Shelf-upper (3)		Appelez-nous	-
62	5306594707		Support, Front, Lh (5)		Appelez-nous	-
62	5306594706		Support, Front, Rh (5)		Appelez-nous	-
63	5306594584		Support, Rear (8)				$ 19.80
64	5306594585		Support, Rear (2)		Appelez-nous	-
65	08005520		Screw-door Stop		Appelez-nous	-
66	06594537		Insert, Nut		Appelez-nous	-
74	5309950066		Pin Base Trim (2)		Appelez-nous	-
75	08037993		Toe Grille		Appelez-nous	-
76	5300118003		Bumper		Appelez-nous	-
79	08016386		Handle-basket		Appelez-nous	-
80	09950862		End Cap		Appelez-nous	-
82	5305878546		Bumper Basket (2)				$ 7.23
83	5308002706		Signal Light-amber				$ 39.11
84	5308016366		Switch		Appelez-nous	-
85	08016367		Buzzer		Appelez-nous	-
86	08016369		Mounting Bracket-alarm		Appelez-nous	-
87	08016772		Signal Light-red		Appelez-nous	-
88	08037851		Screw				$ 3.57
89	08016495		Housing Sensor		Appelez-nous	-
90	F300210		Wire Harness-alarm		Appelez-nous	-
90	5308037992		Sensor Assembly				$ 167.58

    View Diagram in Separate Window       Print Part List
