SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - Shelves And Supports
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:

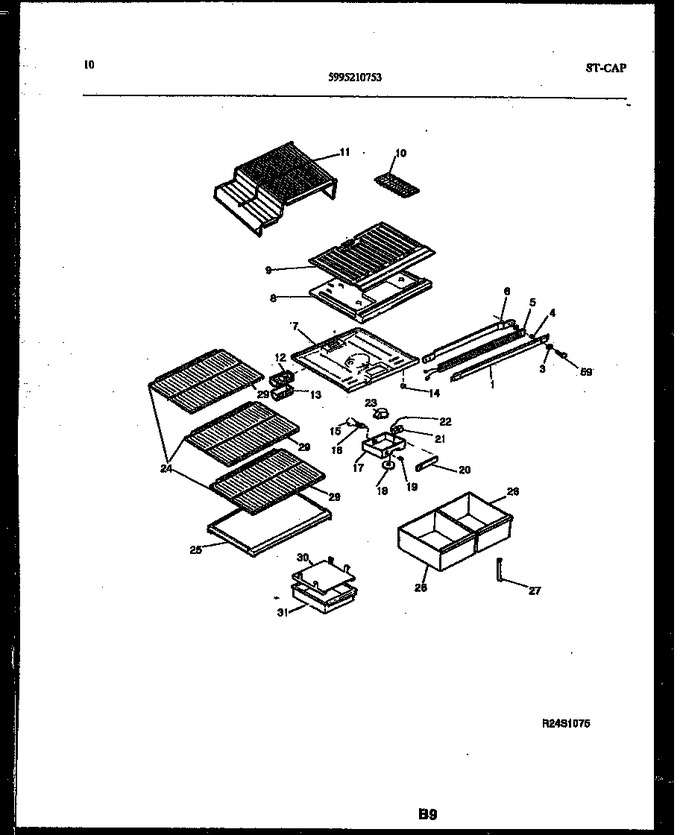

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 24 | 5303001491 | Shelf-cantilever, Refr, (3) |
|
- | |||||
| 25 | 5303001493 | Cover-crisper Pan |
|
- | |||||
| 26 | 5303001437 | Pan-crisper, Rh |
|
- | |||||
| 26 | 5303001436 | Pan-crisper, Lh |
|
- | |||||
| 27 | 5303205987 | Support-crisper Cvr, Adjustable |
|
$ 48.41 | |||||
| 29 | 3001492 | Trim-refr Shelf, Snap-on, Front, (3) |
|
- | |||||
| 30 | 5308000263 | Cover-meat Pan |
|
- | |||||
| 31 | 5303001494 | Pan-meat |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 24A | 5300170910 | Clip-cantilever Shlf (non-illustrated) |
|
$ 2.60 |
