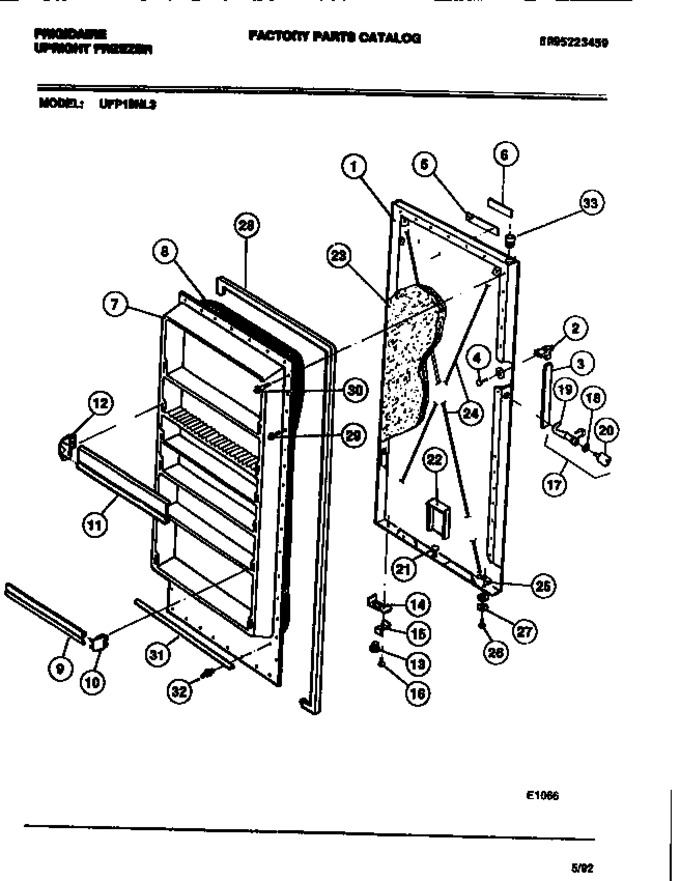

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08016592		Panel Door-almond		Appelez-nous	-
2	5308016581		Handle End Cap (2)				$ 18.45
3	3016894		Grip Handle		Appelez-nous	-
4	08016582		Screw Handle (2)		Appelez-nous	-
5	08037409		Nameplate Bezel		Appelez-nous	-
6	08037949		Insert Nameplate		Appelez-nous	-
7	216017208		Panel-inner (almond)		Appelez-nous	-
8	09950831		Insulation		Appelez-nous	-
9	3017748		Shelf Front Narrow (2)		Appelez-nous	-
10	5303925377		End Cap Lh Narrow (2)   (Replaces: 5308015542)			Immediately	$ 46.07
10	5303925377		End Cap Rh Narrow (2)   (Replaces: 5308015541)			Immediately	$ 46.07
11	08016386		Shelf Front Wide (3)		Appelez-nous	-
12	5308015540		End Cap Lh Wide (3)		Appelez-nous	-
12	5308015539		End Cap, Rh Wide (3)		Appelez-nous	-
13	5303210403		Bearing, Bottom		Appelez-nous	-
14	5300091170		Reinforcement, Door Stop		Appelez-nous	-
15	08016354		Stop-door				$ 36.07
16	08005520		Screw-door Stop		Appelez-nous	-
17	5303925107		Lock-complete		Appelez-nous	-
18	5300114366		Washer-lock		Appelez-nous	-
19	216013800		Lock Hook		Appelez-nous	-
20	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
21	5309950074		Valve Breather (2)				$ 12.48
22	5303212700		Air Duct Breather		Appelez-nous	-
23	5303007739		Insulation, Door		Appelez-nous	-
24	08037981		Wire Adjusting (2)		Appelez-nous	-
25	05879859		Bracket		Appelez-nous	-
26	5300057906		Screw, Bracket		Appelez-nous	-
27	09950839		Washer, Bracket		Appelez-nous	-
28	3206257		Gasket Door (brown)		Appelez-nous	-
29	216858001		Screw, Panel (22)   (Replaces: 5303161215)			Immediately	$ 10.85
30	08009384		Screw Panel (24)		Appelez-nous	-
31	5308016356		Gasket		Appelez-nous	-
32	5303212828		Clip, Gasket (5)				$ 16.63
33	5306593364		Bearing-top		Appelez-nous	-
