02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206063		Grip-handle (2)		Appelez-nous	-
2	5303001297		End-handle Top				$ 70.22
3	5303001296		End-handle (2)				$ 86.36
4	5303001295		End-handle Bottom		Appelez-nous	-
5	218843801		Screw   (Replaces: 5303001001)				$ 14.41
6	5303001484		Rack-door (2)		Appelez-nous	-
7	5303001410		Support Door Rach Rh (4)		Appelez-nous	-
8	5303001411		Support-door Rack, Lh, (4)		Appelez-nous	-
9	3001485		Panel Inner Door		Appelez-nous	-
10	5303001486		Gasket-door Freezer		Appelez-nous	-
11	5308000255		Door Stop-freezer				$ 42.20
12	240494001		Button-plug Handle Hole-white (8)   (Replaces: 5308000090)			Immediately	$ 18.20
12	5308000181		Button-plug Handle Hole-almond (8)		Appelez-nous	-
12	5308000180		Button-plug Handle Hole-wheat (8)		Appelez-nous	-
13	5308000134		Button-plug Hinge Hole-white				$ 5.62
13	5308000176		Button-plug Hinge Hole-wheat		Appelez-nous	-
13	5303001308		Button-plug Hinge Hole-almond		Appelez-nous	-
14	3001312		Nameplate Assembly		Appelez-nous	-
15	5308012007		Bearing, Hinge (8)		Appelez-nous	-
16	5317869011		Panel-freezer, Almond		Appelez-nous	-
16	5317869009		Panel-freezer-wheat		Appelez-nous	-
16	5300178690		Panel-freezer-white		Appelez-nous	-
17	5308011745		Screw				$ 10.38
18	5308015544		Gasket Refrigerator Door		Appelez-nous	-
19	5303001415		Door Compartment (2)		Appelez-nous	-
20	5318539701		Panel-inner Door		Appelez-nous	-
21	5317869409		Panel Refrigerator-wheat		Appelez-nous	-
21	5300178694		Panel Refrigerator-white		Appelez-nous	-
21	5317869411		Panel Refrigerator-almond		Appelez-nous	-
22	5303001418		Rack-door (2)		Appelez-nous	-
11A	5303212491		Door Stop-refrigerator (non-illustrated)		Appelez-nous	-
11B	5308011745		Screw				$ 10.38
21A	5303007739		Insulation-bulk (non-illustrated)		Appelez-nous	-

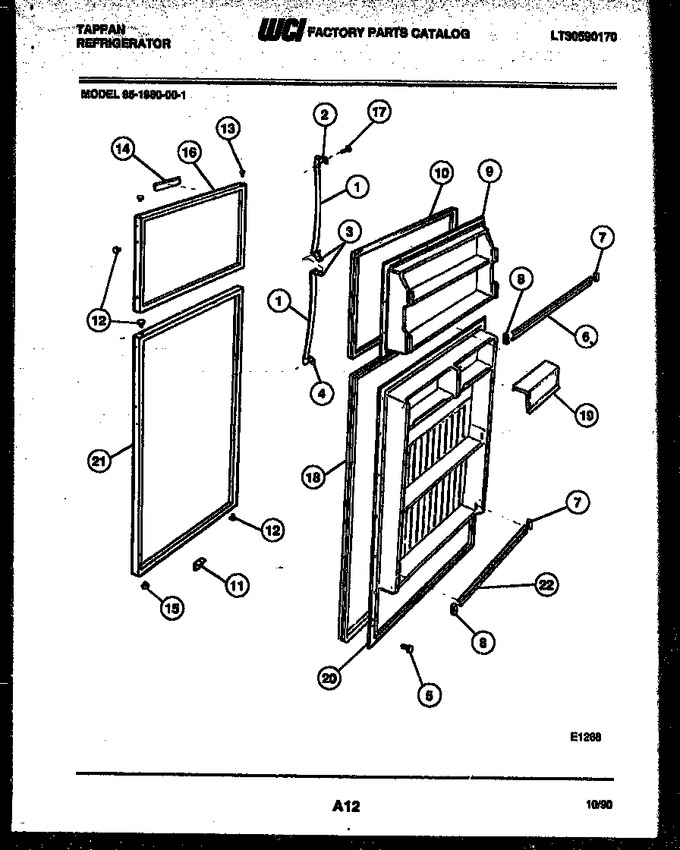

    View Diagram in Separate Window       Print Part List
