SELECT A DIAGRAM

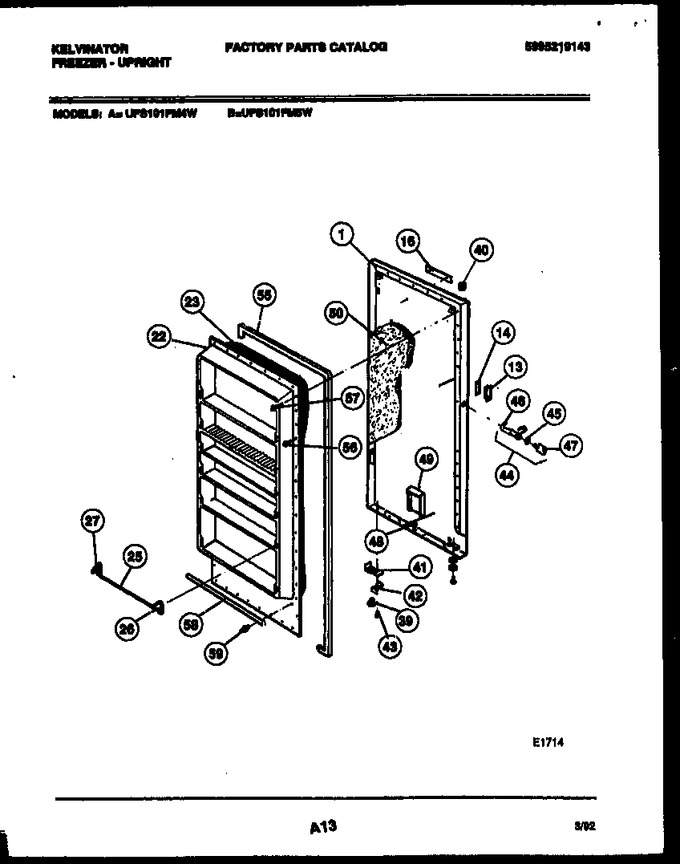

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	F126045-S		Panel-door (white)		Appelez-nous	-
13	5300112637		Handle Recessed		Appelez-nous	-
14	08009392		Gasket Handle		Appelez-nous	-
16	F128855		Nameplate Bezel		Appelez-nous	-
22	5300129630		Panel-inner		Appelez-nous	-
23	09950831		Insulation Dike		Appelez-nous	-
25	R000128141		Shelf-front Wire (4)		Appelez-nous	-
26	08005524		End Cap Rh		Appelez-nous	-
27	08005525		End Cap Lh		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	5306593364		Bearing-top		Appelez-nous	-
41	5300091170		Reinforcement, Door Stop		Appelez-nous	-
42	08005524		End Cap Rh		Appelez-nous	-
43	08005520		Screw-door Stop		Appelez-nous	-
44	5303925107		Lock-complete		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	3202005		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve, Breather				$ 12.48
49	5300128421		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
55	3206238		Gasket-door (brown)		Appelez-nous	-
56	216858001		Screw-door Panel (20)   (Replaces: 5303161215)			Immediately	$ 10.85
57	216022800		Screw Shoulder Panel (16)		Appelez-nous	-
58	08009385		Gasket		Appelez-nous	-
59	5303091422		Rivet-gasket (5)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
