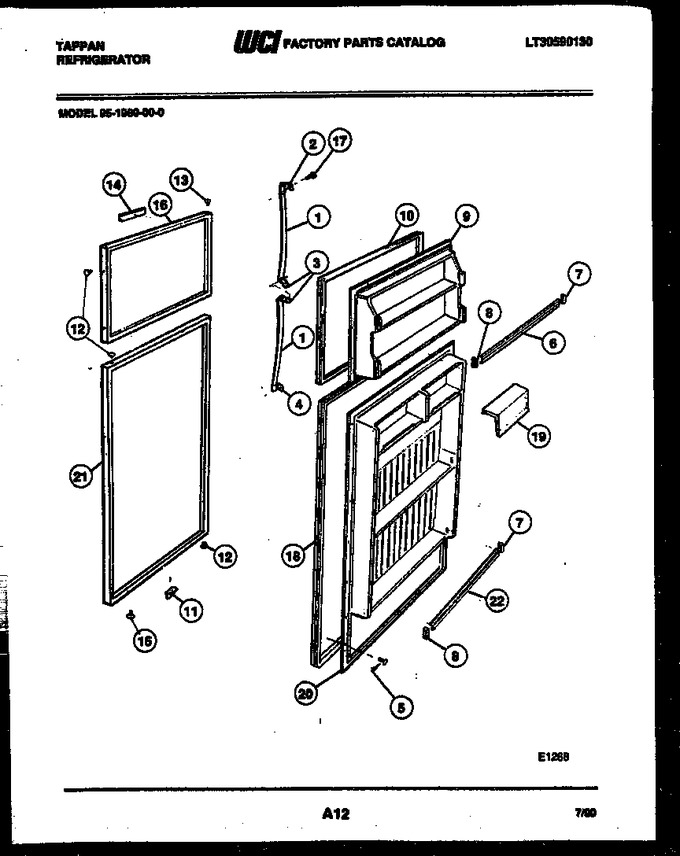

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206063 | Grip-handle (2) |
|
- | |||||
| 2 | 5303001297 | End-handle Top |
|
$ 70.22 | |||||
| 3 | 5303001296 | End-handle (2) |
|
$ 86.36 | |||||
| 4 | 5303001295 | End-handle Bottom |
|
- | |||||
| 5 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 6 | 5303001484 | Rack-door (2) |
|
- | |||||
| 7 | 5303001410 | Support-door Rack, Rh, (4) |
|
- | |||||
| 8 | 5303001411 | Support-door Rack, Lh, (4) |
|
- | |||||
| 9 | 3001485 | Panel Inner Door |
|
- | |||||
| 10 | 5303001486 | Gasket-door Freezer |
|
- | |||||
| 11 | 5308000255 | Stop-door (2) |
|
$ 42.20 | |||||
| 12 | 240494001 | Button-plug Handle Hole-white (8) (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 13 | 5303001308 | Button-plug Hinge Hole-almond |
|
- | |||||
| 13 | 5308000134 | Button-plug Hinge Hole-white |
|
$ 5.62 | |||||
| 14 | 3001312 | Nameplate Assy |
|
- | |||||
| 15 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 16 | 5317869009 | Panel-freezer-wheat |
|
- | |||||
| 17 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 18 | 5308015544 | Gasket Refrigerator Door |
|
- | |||||
| 19 | 5303001415 | Door Compartment (2) |
|
- | |||||
| 20 | 5318539701 | Panel-inner Door |
|
- | |||||
| 21 | 5317869409 | Panel Refrigerator-wheat |
|
- | |||||
| 22 | 5303001418 | Rack-door (2) |
|
- | |||||
| 21A | 5303007739 | Insulation-bulk (non-illustrated) |
|
- |
