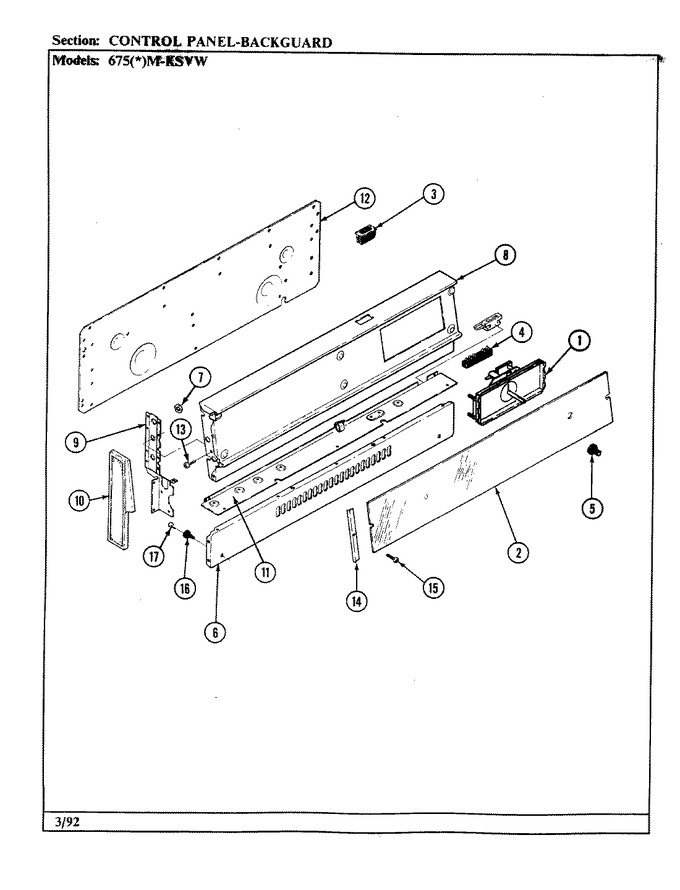

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7602P091-60		Clock, Int. Timer	1	Appelez-nous	-
2	7910P127-60		Glass, Bkgd	1	Appelez-nous	-
3	7403P067-60		Switch, Rocker (blk)	1			$ 91.35
4	7401P015-60		Block, Terminal	1	Appelez-nous	-
5	7711P007-60		Knob, Clock	1	Appelez-nous	-
6	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
6	2620W053-09		Panel Bkgd Lower	1	Appelez-nous	-
7	7103P053-60		Nut, Push-on End Cap	1	Appelez-nous	-
8	2601W199-84		Panel, Backguard		Appelez-nous	-
9	3807F349-51		Support, Bkgd End Rt	1	Appelez-nous	-
9	3807F348-51		Support, Bkgd End Lf	1	Appelez-nous	-
9	WPW10068250		Screw   (Replaces: 7101P074-60)	1			$ 3.66
9	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
10	7726P031-60		Trim, Bkgd End (lt)	1	Appelez-nous	-
10	7726P032-60		Trim, Bkgd End (rt)	1	Appelez-nous	-
11	4005F034-80		Cover, Bottom	1	Appelez-nous	-
12	4005F393-80		Cover Bkgd Wire	1	Appelez-nous	-
12	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	1			$ 6.98
13	WPW10068250		Screw   (Replaces: 7101P074-60)	1			$ 3.66
14	7742P009-60		Trim, Retainer Glass	1	Appelez-nous	-
15	7101P008-60		Screw	1	Appelez-nous	-
16	7105P002-60		Support, Main Top	1	Appelez-nous	-
17	5180A020-60		Harness, Main (complete)	1	Appelez-nous	-
17	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
