SELECT A DIAGRAM

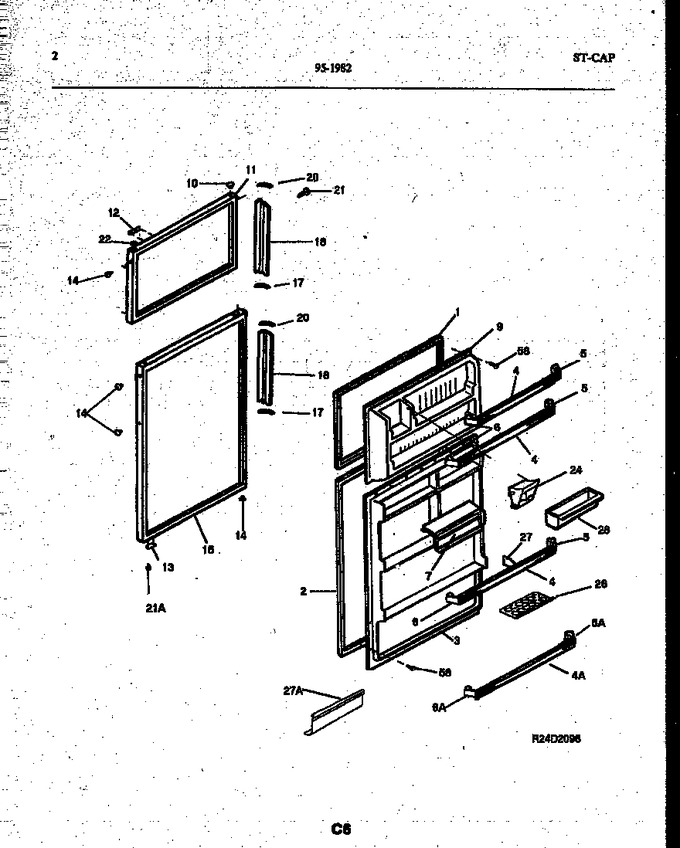

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Shelves And Supports


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303018791		Gasket-frzr Door, Magnetic, White				$ 130.56
2	5303018792		Gasket-refr Door, Magnetic, White		Appelez-nous	-
3	5303286017		Panel-inner Door, Refr		Appelez-nous	-
4	5303285983		Rack-door, Narrow, (3)		Appelez-nous	-
5	5317828701		Support-door Rack, Rh, (3)				$ 8.18
6	5317828401		Support-door Rack, Lh, (3)				$ 11.48
7	5303285973		Door-dairy, (2)		Appelez-nous	-
9	3202033		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5308009933		Panel-frzr Door, Almond		Appelez-nous	-
12	215134402		Label-nameplate, Almd/gray Ltrs		Appelez-nous	-
13	5303212491		Door Stop, Refr		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	3916036		Panel-refr Door, Almond		Appelez-nous	-
17	5308010238		Handle End		Appelez-nous	-
18	215081811		Handle-door, 16.69`` Long, Almond, W/ Trim, End Caps		Appelez-nous	-
20	5308010239		Handle End		Appelez-nous	-
21	5308013645		Screw, Handle Mtg		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
24	3203047		Dispenser-juice Can,white		Appelez-nous	-
26	215817806		Tray-egg, Water Clear   (Replaces: 5303284457)				$ 13.46
27	5303211819		Snugger-door Rack, ``paddle Type``, Water Clear		Appelez-nous	-
28	5303285974		Bin-utility, White		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*70187	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
13A	5308000255		Door Stop, Frzr (non Illustrated)				$ 42.20
21A	5308011745		Screw				$ 10.38
27A	3206307		Retainer-bottle		Appelez-nous	-
4A	5303286103		Rack-door, Wide		Appelez-nous	-
5A	3206150		Support, Door Rack, Rh				$ 12.58
6A	3206151		Support-door Rack, Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
