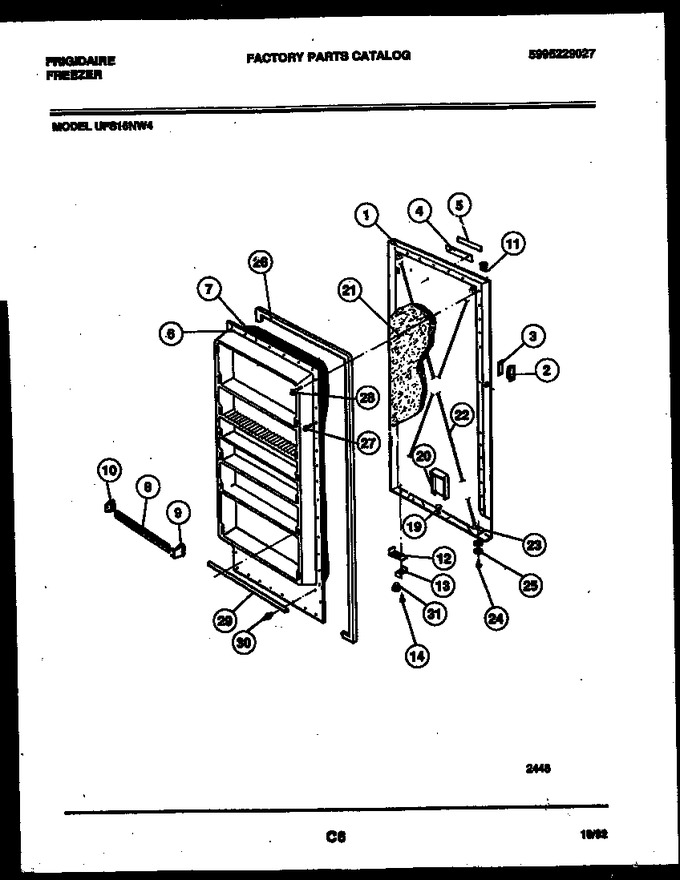

02 - Door Parts
03 - Cabinet Parts
04 - System And Electrical Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216011402 | Panel-door (white) |
|
- | |||||
| 2 | 08037955 | Handle Recessed |
|
- | |||||
| 3 | 08009392 | Gasket Handle |
|
- | |||||
| 4 | 08037409 | Nameplate Bezel |
|
- | |||||
| 5 | 08037949 | Insert Nameplate |
|
- | |||||
| 6 | 216012612 | Panel-inner (white) |
|
- | |||||
| 7 | 06594525 | Insulation |
|
- | |||||
| 8 | 3017749 | Shelf Front Narrow (5) |
|
- | |||||
| 9 | 5303925377 | End Cap Rh Narrow (5) (Replaces: 5308015541) |
|
Immediately | $ 46.07 | ||||
| 10 | 5303925377 | End Cap Lh Narrow (5) (Replaces: 5308015542) |
|
Immediately | $ 46.07 | ||||
| 11 | 5306593364 | Bearing-top |
|
- | |||||
| 12 | 5300091170 | Reinforcement, Door Stop |
|
- | |||||
| 13 | 06593882 | Door Stop |
|
- | |||||
| 14 | 08005520 | Screw-door Stop |
|
- | |||||
| 19 | 5309950074 | Valve Breather (2) |
|
$ 12.48 | |||||
| 20 | 5303212700 | Air Duct Breather |
|
- | |||||
| 21 | 5303007739 | Insulation, Door |
|
- | |||||
| 22 | 08037953 | Wire Adjusting |
|
- | |||||
| 23 | 05879859 | Bracket |
|
- | |||||
| 24 | 5300057906 | Screw, Bracket |
|
- | |||||
| 25 | 09950839 | Washer, Bracket (2) |
|
- | |||||
| 26 | 3206246 | Gasket Door (white) |
|
$ 238.51 | |||||
| 27 | 216858001 | Screw Door Panel (26) (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 28 | 08009384 | Screw-panel (16) |
|
- | |||||
| 29 | 06594682 | Gasket |
|
- | |||||
| 30 | 5303212828 | Rivet Gasket (5) |
|
$ 16.63 | |||||
| 31 | 5303210403 | Bearing, Bottom |
|
- |
