SELECT A DIAGRAM

01 - Tub And Basket


02 - Drive


03 - Water System


04 - Top And Console


05 - Cabinet


06 - Gearcase


07 - Basket Drive And Brake


08 - Miscellaneous, Lit/optional

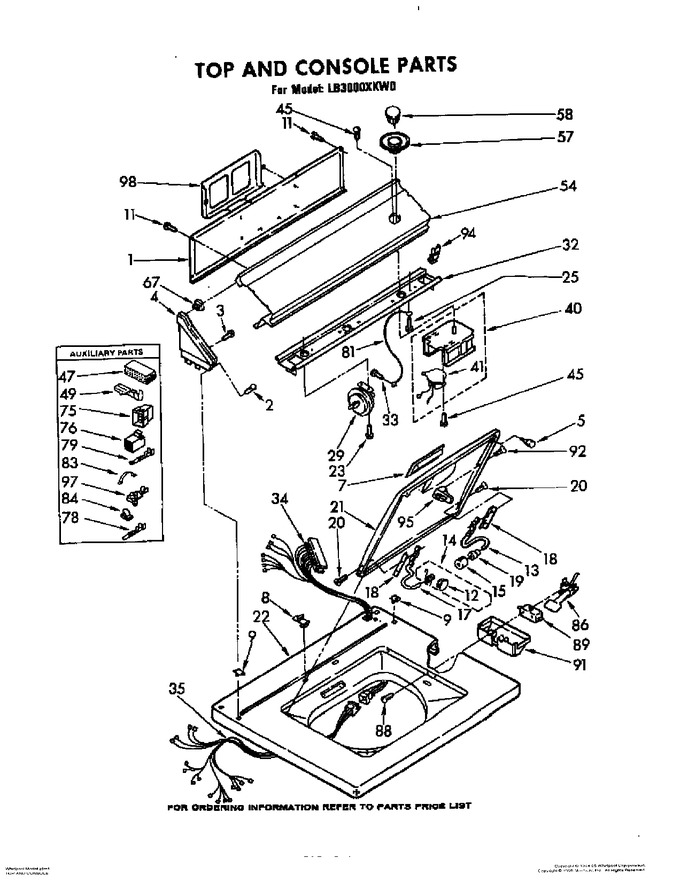

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	358590		Panel, Rear Console		Appelez-nous	-
2	358225		Screw, 8-18		Appelez-nous	-
3	355326		Screw, 12-16 X 5/8		Appelez-nous	-
4	377315		Cap, End (l.h) (white)		Appelez-nous	-
4	377314		Cap, End (l.h.) (white)		Appelez-nous	-
5	WP9724509		Bumper, Rubber   (Replaces: 93770)			Immediately	$ 7.14
7	WP686711		Handle, Lib   (Replaces: 94941)			Immediately	$ 7.16
8	358473		Stop, Push-in Top				$ 5.84
9	358472		Nut, Push-in (2)		Appelez-nous	-
11	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 12.65
12	54690		Plug, Button		Appelez-nous	-
13	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 24.71
14	53749		Spring Assembly L.h.		Appelez-nous	-
15	19119		Bumper, Lid Hinge				$ 5.75
17	WP54584		Hinge, Lid (l.h.)   (Replaces: 54584)				$ 30.09
18	WP21097		Pad, Hinge   (Replaces: 21097)				$ 7.02
19	WP21258		Bearing, Hinge   (Replaces: 21258)			Immediately	$ 6.87
20	WPW10119828		Screw, Hinge Mounting   (Replaces: 18724)			Immediately	$ 6.47
21	343491		Lid (white)		Appelez-nous	-
22	380290		Lid (white)		Appelez-nous	-
23	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
25	WP3351614		Screw, 10 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
29	366509		Switch, Water Level		Appelez-nous	-
32	359758		Bracket, Control		Appelez-nous	-
33	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
34	359384		Harness, Console		Appelez-nous	-
35	359385		Harness, Base		Appelez-nous	-
40	359312		Timer, 60 Hz. (c.c.a.)		Appelez-nous	-
41	357295		Motor, Timer (60 Hz.) (use W/c.c.a. Timer)		Appelez-nous	-
45	WP356418		Screw, 10-32 X 5/16   (Replaces: 96435)				$ 7.13
47	W10876590		Block, Disconnect   (Replaces: 352089)				$ 11.48
49	352088		Terminal, Female				$ 5.83
54	375695		Panel, Control		Appelez-nous	-
57	359826		Dial, Timer		Appelez-nous	-
58	359822		Knob, Timer		Appelez-nous	-
67	689559		Nut, Push-in (4)		Appelez-nous	-
75	94612		Cap, Terminal (console Harness)		Appelez-nous	-
76	94611		Plug, Terminal (cabinet Harness)		Appelez-nous	-
78	94613		Terminal, (male)		Appelez-nous	-
79	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
81	357534		Wire, Ground		Appelez-nous	-
83	WP98997		Clip   (Replaces: 98997)				$ 9.98
84	WP90016		Clip   (Replaces: 90016)				$ 10.19
86	370959		Switch Actuator Assembly				$ 33.01
88	354764		Screw And Washer		Appelez-nous	-
89	W10820036		Switch, Lid (alternate)   (Replaces: 364091)			Immediately	$ 27.45
89	W10820036		Switch, Lid (alternate)   (Replaces: 367034)			Immediately	$ 27.45
89	00-6163		Switch, Lid (alternate)   (Replaces: 364090)				$ 22.92
91	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
92	354975		Screw And Washer		Appelez-nous	-
94	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
95	357633		Strike, Lid Switch		Appelez-nous	-
97	357695		Ring, Grounding		Appelez-nous	-
98	357645		Rack, Literature		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
