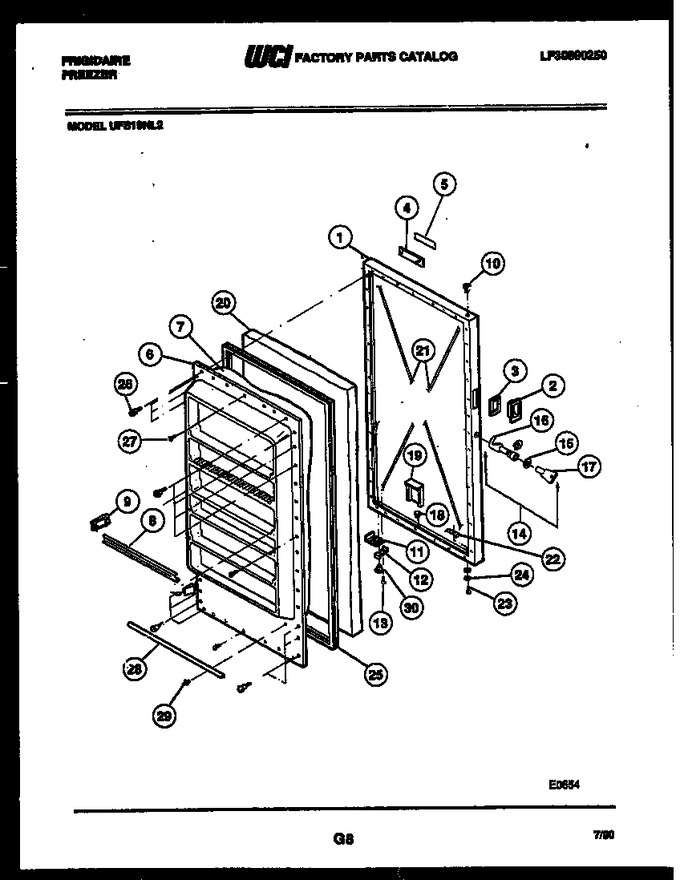

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08037979		Panel-door (almond)		Appelez-nous	-
2	08037982		Handle Recessed		Appelez-nous	-
3	08009392		Gasket Handle		Appelez-nous	-
4	08037409		Nameplate Bezel		Appelez-nous	-
5	08037949		Insert Nameplate		Appelez-nous	-
6	08010196		Panel-inner (white)		Appelez-nous	-
7	09950831		Insulation		Appelez-nous	-
8	08037980		Shelf Front Wire (5)		Appelez-nous	-
9	08005525		End Cap Lh		Appelez-nous	-
9	08005524		End Cap Rh		Appelez-nous	-
10	5306593364		Bearing-top		Appelez-nous	-
11	F91170		Reinforcement, Door Stop		Appelez-nous	-
12	08016354		Stop-door				$ 36.07
13	08005520		Screw-door Stop		Appelez-nous	-
14	5300190358		Lock-complete		Appelez-nous	-
15	5300114366		Washer-lock		Appelez-nous	-
16	3202005		Lock Hook		Appelez-nous	-
17	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
18	5309950074		Valve Breather (2)				$ 12.48
19	5300128421		Air Duct Breather		Appelez-nous	-
20	5303007739		Insulation, Door		Appelez-nous	-
21	08037981		Wire Adjusting (2)		Appelez-nous	-
22	05879859		Bracket		Appelez-nous	-
23	F57906		Screw Bracket		Appelez-nous	-
24	09950839		Washer, Bracket		Appelez-nous	-
25	3206257		Gasket Door (brown)		Appelez-nous	-
26	216858001		Screw Door Panel (22)   (Replaces: 5303161215)			Immediately	$ 10.85
27	08009384		Screw Panel (24)		Appelez-nous	-
28	5308016356		Gasket		Appelez-nous	-
29	5303091422		Rivet-gasket (5)		Appelez-nous	-
30	5303210403		Bearing, Bottom		Appelez-nous	-
