SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts

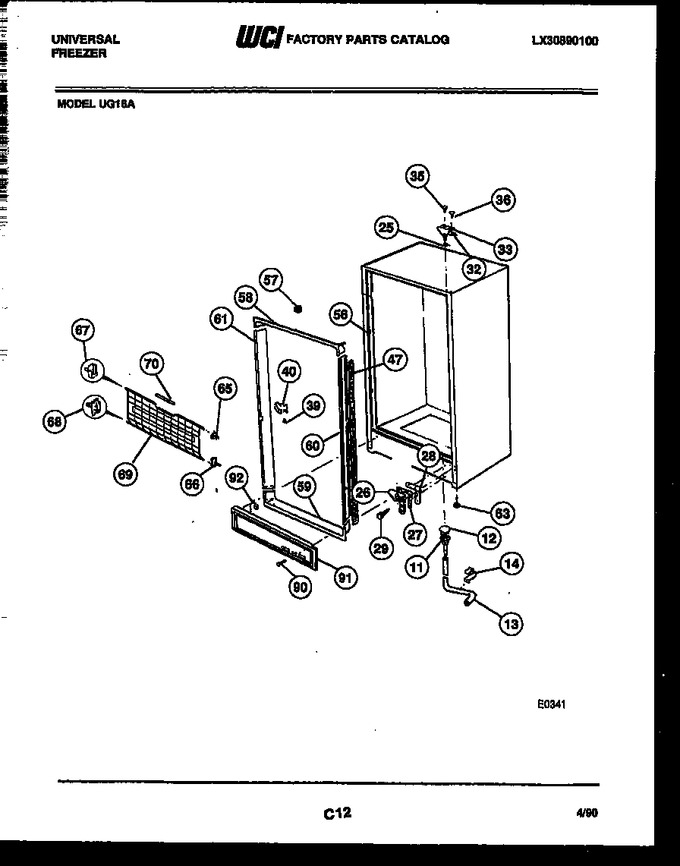

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
12	5396593887		Plug-drain		Appelez-nous	-
13	5308037944		Hose Drain		Appelez-nous	-
14	06593405		Clamp		Appelez-nous	-
25	5300057523		Bearing Hinge (3)		Appelez-nous	-
26	5306594549		Hinge-bottom		Appelez-nous	-
27	5303207296		Spacer		Appelez-nous	-
28	06594550		Plate		Appelez-nous	-
29	154518001		Screw-hinge (3)   (Replaces: 5303205738)				$ 10.54
32	06593894		Plate		Appelez-nous	-
33	3017656		Hinge Top		Appelez-nous	-
35	06593898		Screw		Appelez-nous	-
36	08037848		Screw-hinge-rear		Appelez-nous	-
39	216858001		Screw-latch Catch   (Replaces: 5303161215)			Immediately	$ 10.85
40	5309949966		Latch-catch		Appelez-nous	-
47	09950831		Insulation		Appelez-nous	-
56	06594680		Clip, Breaker		Appelez-nous	-
57	08037937		Spacer-top Breaker (2)		Appelez-nous	-
58	5308005501		Breaker Top		Appelez-nous	-
59	5308005502		Breaker Bottom		Appelez-nous	-
60	F121458-64		Breaker, Hinge		Appelez-nous	-
61	5308005512		Breaker Lock Side		Appelez-nous	-
63	5303205540		Leveling Leg (4)		Appelez-nous	-
65	06599973		Support, Top Rh				$ 6.49
66	06599975		Support, Bottom Rh				$ 5.99
67	06599974		Support, Top Lh		Appelez-nous	-
68	06599976		Support, Bottom Lh		Appelez-nous	-
69	08005507		Drop Front		Appelez-nous	-
70	06599971		Handle Drop Front		Appelez-nous	-
90	5309950066		Pin Fastener		Appelez-nous	-
91	5300124805		Toe Grille		Appelez-nous	-
92	5300118003		Bumper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
