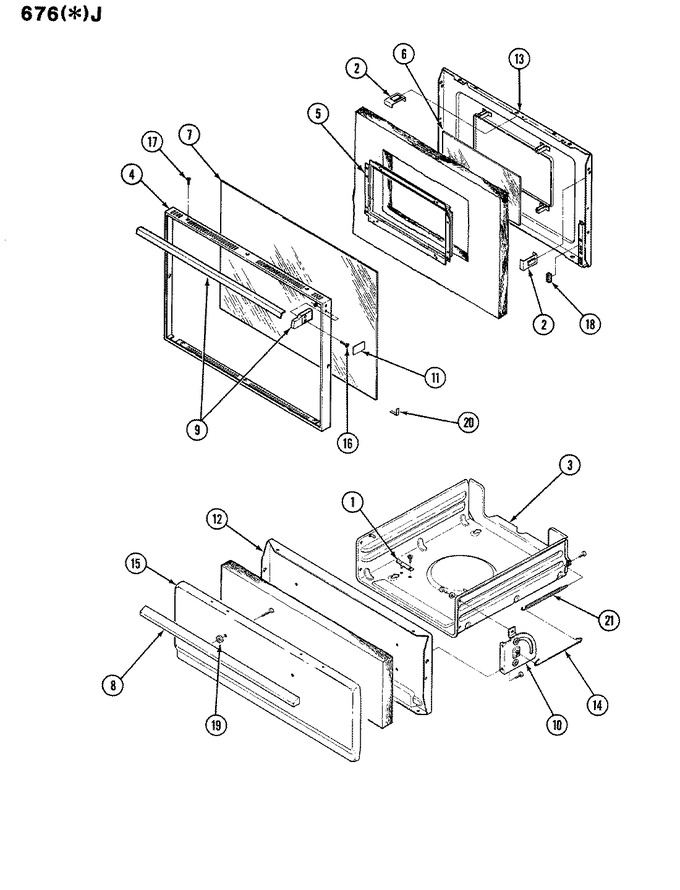

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8002P001-60		Catch	1	Appelez-nous	-
2	7112P034-60		Clip, Door	1	Appelez-nous	-
3	3407W009-23		Drawer, Broiler	1	Appelez-nous	-
4	7706P243-60		Frame, Door	1	Appelez-nous	-
5	3603F013-80		Frame, Window----na	1	Appelez-nous	-
6	7902P035-60		Glass, Door Inner	1	Appelez-nous	-
7	7902P274-60		Glass, Door	1	Appelez-nous	-
8	7701P030-60		Handle, Door (chr)	1	Appelez-nous	-
9	7701P047-60		Handle, Door	1	Appelez-nous	-
10	3418A062-34		Hinge, Broiler (rt)	1	Appelez-nous	-
10	3418A063-34		Hinge, Broiler (lt)	1	Appelez-nous	-
11	7728P012-60		Insert, Oven Door Handle	1	Appelez-nous	-
12	2404F021-23		Lining, Broiler	1	Appelez-nous	-
13	2402W091-16		Lining Assy, Ov Dr	1	Appelez-nous	-
13	2402W091-23		Lining Assy, Ov Dr	1	Appelez-nous	-
14	7807P001-60		Link, Broiler	1	Appelez-nous	-
15	74002481		Screw, Handle   (Replaces: 7101P283-60)	35			$ 5.82
15	2416F025-76		Panel, Drawer (hv Wht)	1	Appelez-nous	-
15	2416F025-77		Panel, Drawer (avoc)	1	Appelez-nous	-
15	2416F025-78		Panel, Drawer (coff)	1	Appelez-nous	-
15	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	1-34		Immediately	$ 7.69
15	2416F025-71		Panel, Drawer (wht)	1	Appelez-nous	-
15	2416F025-74		Panel, Drawer (alm)	1	Appelez-nous	-
16	7101P123-60		Screw	1	Appelez-nous	-
17	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	1		Immediately	$ 6.85
17	7208P007-60		Seal, Silastic	1	Appelez-nous	-
18	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	1			$ 11.95
19	8010P002-60		Spacer, Handle	1-34	Appelez-nous	-
19	W10124350		Not Required Part Or See Note	35	Appelez-nous	-
20	8010P045-60		Spacer, Glass Corner	1	Appelez-nous	-
21	7803P014-60		Spring	1	Appelez-nous	-
21	3420A033-34		Stop, Oven Door	1	Appelez-nous	-
21	WP7803P058-60		Spring   (Replaces: 7803P002-60)	1			$ 16.55
