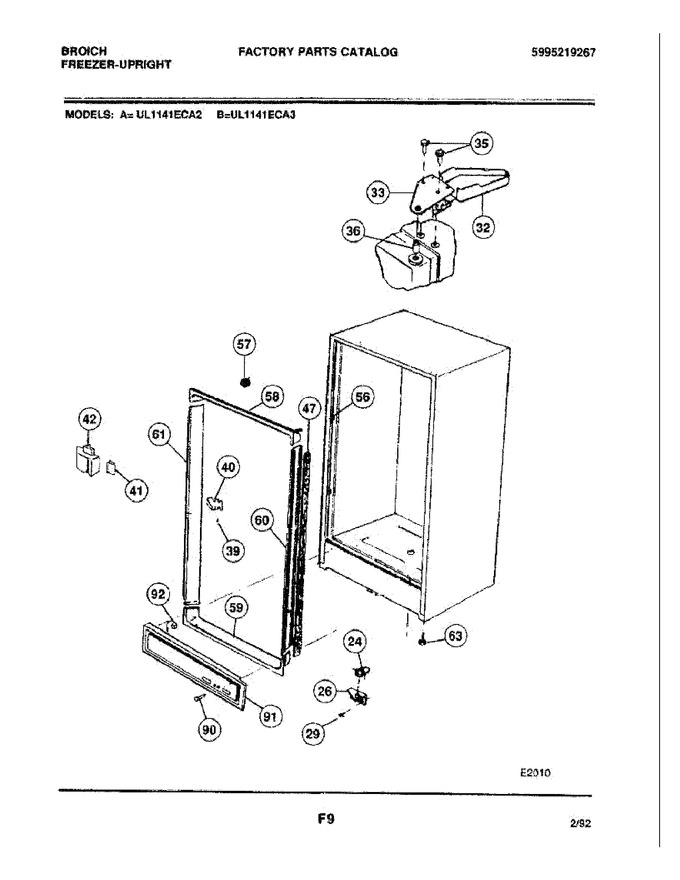

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
24	5303210424		Ramp, Door Closer		Appelez-nous	-
26	5303210385		Hinge Bottom		Appelez-nous	-
29	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
32	5303271446		Cover-hinge (almond)		Appelez-nous	-
33	5303212935		Hinge, Top		Appelez-nous	-
35	5303212937		Screw-top Hinge		Appelez-nous	-
41	216013700		Clip Lock		Appelez-nous	-
42	216013600		Support, Lock		Appelez-nous	-
47	09950831		Insulation		Appelez-nous	-
56	06594680		Clip, Breaker		Appelez-nous	-
57	08037937		Spacer Top Breaker		Appelez-nous	-
58	08009374		Breaker-top		Appelez-nous	-
59	08009375		Breaker-bottom		Appelez-nous	-
60	08009376		Breaker-hinge		Appelez-nous	-
61	216013900		Breaker-lock Side		Appelez-nous	-
63	5303205540		Leveling Leg		Appelez-nous	-
90	F125041		Pin Fastener		Appelez-nous	-
91	3206061		Toe Grille		Appelez-nous	-
92	5300118003		Bumper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
