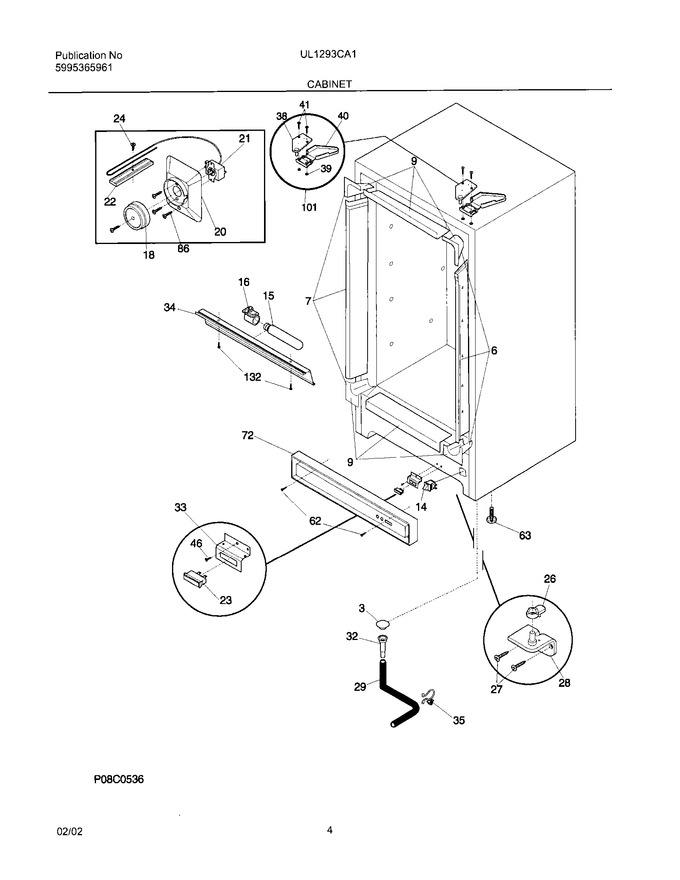

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior ,interior			Immediately	$ 17.35
6	216604400		Breaker Kit W/corners		Appelez-nous	-
7	216603900		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603400		Breaker Kit W/corners,28`` ,top Or Bottom		Appelez-nous	-
14	216822900		Light/lamp, Ramp			Immediately	$ 70.16
15	5304517886		Lamp,light Bulb ,40 W ,120 V   (Replaces: 216608600)			Immediately	$ 73.06
16	5300136117		Socket, Light/lamp				$ 52.46
18	216707200		Knob-control Cold				$ 44.10
20	216707300		Cover-control Housing		Appelez-nous	-
21	297216004		Control-temperature   (Replaces: 216788100)			Immediately	$ 53.52
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
23	06594648		Signal Light, Amber		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	216503300		Ramp, Closer Door				$ 8.82
27	216313000		Screw,10-24x3/4,hinge		Appelez-nous	-
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304510363		Hose-drain   (Replaces: 216313502)				$ 13.74
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
33	216252001		Bracket, Signal Light		Appelez-nous	-
34	216557502		Shield-light		Appelez-nous	-
35	216273000		Clip, Drain Hose				$ 22.42
38	216808900		Hinge-upper				$ 92.87
39	5303294372		Nut Insert-hinge				$ 43.68
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	241710601		Screw   (Replaces: 5303001479)				$ 13.46
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	216591214		Grille/kickplate		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
101	216835200		Kit-top Hinge				$ 50.99
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
	216313300		Plate-tapping, Hinge		Appelez-nous	-
	09948773		Insulation, Drain Tube				$ 12.60
