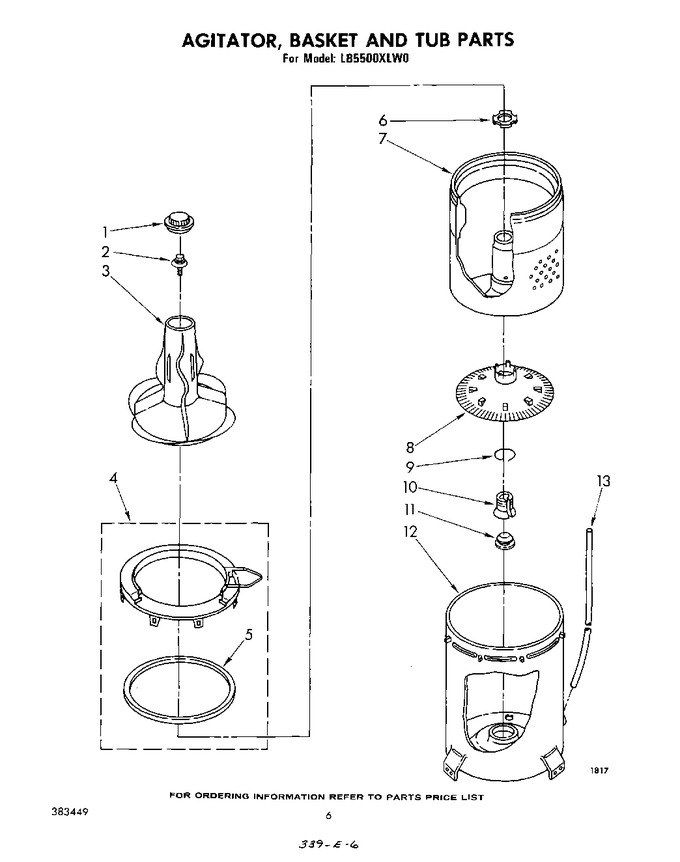

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 62947) |
|
Immediately | $ 8.10 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 7.97 | ||||
| 3 | WP63235 | Agitator (Replaces: 62922) |
|
Immediately | $ 203.08 | ||||
| 4 | 62896 | Tub Ring |
|
- | |||||
| 5 | DE81-02157A | Gasket, Tub Ring (Replaces: 62645) |
|
$ 120.11 | |||||
| 6 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 7 | 62842 | Basket |
|
- | |||||
| 8 | 285868 | Plate Filter (Replaces: 62941) |
|
Immediately | $ 19.51 | ||||
| 9 | 62942 | Lock, Filter |
|
$ 7.59 | |||||
| 10 | WP389140 | Block, Basket Drive (Replaces: 357782) |
|
Immediately | $ 24.74 | ||||
| 11 | W10814296 | Gasket, Centerpost (Replaces: 62665) |
|
Immediately | $ 8.26 | ||||
| 12 | 62523 | Tub |
|
- | |||||
| 13 | WP353244 | Hose, Pressure Switch (Replaces: 62955) |
|
Immediately | $ 53.94 |
