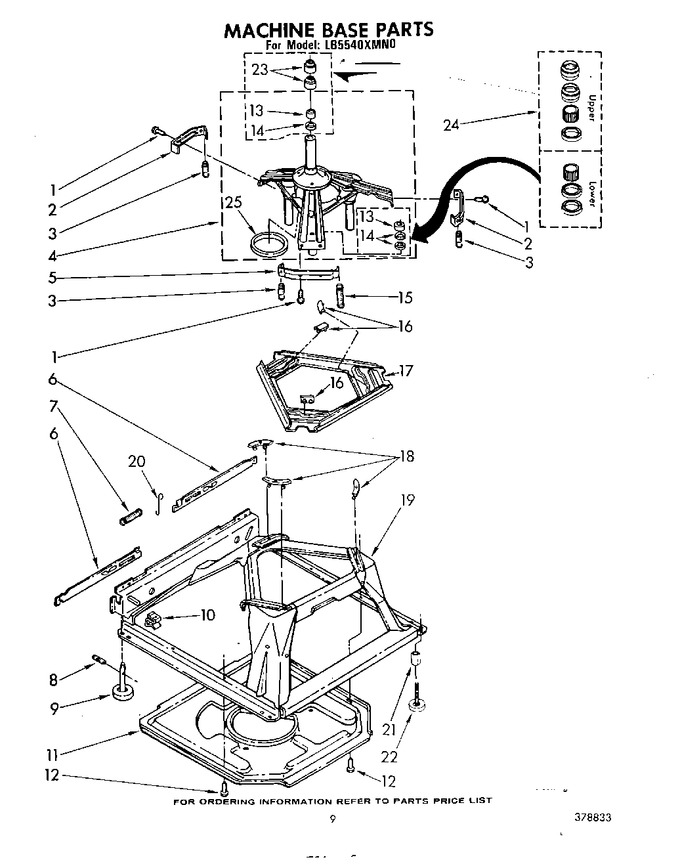

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP273556 | Screw, Bracket Mounting (10-16 X 5/8) (6) (Replaces: 98610) |
|
Immediately | $ 7.04 | ||||
| 2 | WP64067 | Bracket, Spring Outer (2) (Replaces: 64067) |
|
Immediately | $ 7.88 | ||||
| 3 | 62740 | Spring (3) |
|
$ 4.89 | |||||
| 4 | 100092443 | Support & Brake, Tub (Replaces: 63239) |
|
$ 37.86 | |||||
| 5 | 100092723 | Bracket, Spring Outer (l.f.) (Replaces: 64065) |
|
$ 416.82 | |||||
| 6 | 63138 | Link, Leveling Mechanism (2) |
|
$ 34.26 | |||||
| 7 | 8316845 | Spring, Leveling Mechanism (Replaces: 62597) |
|
Immediately | $ 6.75 | ||||
| 8 | WP62837 | Pin, Knurled (Replaces: 62837) |
|
$ 9.66 | |||||
| 9 | 285244 | Foot, Rear (2) (Replaces: 62596) |
|
Immediately | $ 16.43 | ||||
| 10 | 62825 | Clip, Mounting (2) |
|
$ 8.11 | |||||
| 11 | WP3946532 | Pan, Bottom (Replaces: 62824) |
|
$ 28.15 | |||||
| 12 | WP3390631 | Screw, 10-16 X 3/8 (2) (Replaces: 62863) |
|
$ 7.04 | |||||
| 13 | WP8546455 | Bearing, Centerpost (2) (Replaces: 54207) |
|
Immediately | $ 25.16 | ||||
| 14 | W11095997 | Seal, Centerpost (3) (Replaces: 357409) |
|
Immediately | $ 20.07 | ||||
| 15 | WPW10250667 | Spring, Counterweight (Replaces: 62738) |
|
Immediately | $ 8.63 | ||||
| 16 | 285219 | Pad, Plate (Replaces: 62568) |
|
Immediately | $ 20.19 | ||||
| 17 | WP3946509 | Plate (includes Illus. 16) (Replaces: 62567) |
|
$ 181.19 | |||||
| 18 | 285744 | Pad, Base (Replaces: 62602) |
|
Immediately | $ 16.47 | ||||
| 19 | 285459 | Base Assembly (includes Illus, 6, 7, 8, 9, 10 & 18) (Replaces: 63213) |
|
$ 353.49 | |||||
| 20 | WPW10250667 | Retainer, Counterweight Spring (Replaces: 63207) |
|
Immediately | $ 8.63 | ||||
| 21 | WP62739 | Nut, Lock (3/8-16) (2) (Replaces: 62739) |
|
$ 6.85 | |||||
| 22 | WPW10001130 | Foot, Front (2) (Replaces: 386047) |
|
Immediately | $ 7.02 | ||||
| 23 | WP8577376 | Seal, Centerpost (2) (Replaces: 356934) |
|
Immediately | $ 6.47 | ||||
| 24 | 285203 | Centerpost Bearing Kit (includes Illus. 13, 14 & 23) |
|
Immediately | $ 94.46 | ||||
| 25 | WP63134 | Ring, Sound Deadening (Replaces: 63134) |
|
$ 7.35 |
