SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

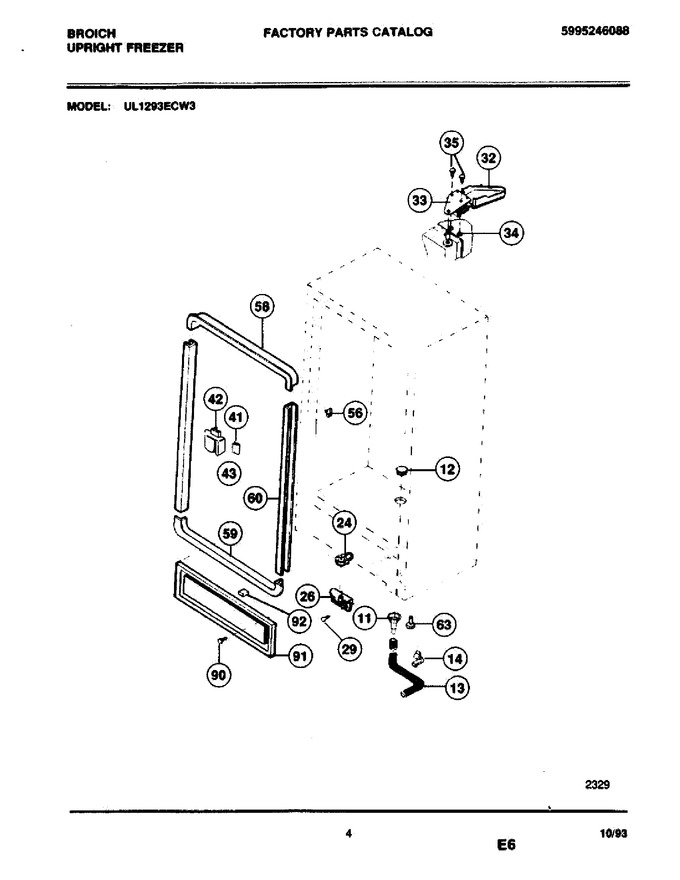

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
12	5306593887		Plug-drain		Appelez-nous	-
13	5308037944		Hose Drain		Appelez-nous	-
14	216273000		Clamp-drain Hose				$ 22.42
24	5303210424		Ramp, Door Closer		Appelez-nous	-
26	5303210383		Hinge, Bottom		Appelez-nous	-
29	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
32	5303212912		Cover, Hinge-white		Appelez-nous	-
33	5303212935		Hinge, Top		Appelez-nous	-
34	5303294372		Nut Insert				$ 43.68
35	5303212937		Screw-top Hinge		Appelez-nous	-
41	216013700		Clip Lock		Appelez-nous	-
42	216013600		Support, Lock		Appelez-nous	-
43	5309918806		Switch, Light			Immediately	$ 21.97
56	06594680		Clip, Breaker		Appelez-nous	-
58	216073300		Breaker Top		Appelez-nous	-
59	216073200		Breaker Bottom		Appelez-nous	-
60	216108401		Breaker, Hinge		Appelez-nous	-
61	216108501		Breaker-lock Side		Appelez-nous	-
63	5303205540		Leveling Leg		Appelez-nous	-
90	5309950066		Pin Fastener		Appelez-nous	-
91	3206062		Toe Grille		Appelez-nous	-
92	5300118003		Bumper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
