SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Control System


04 - Door

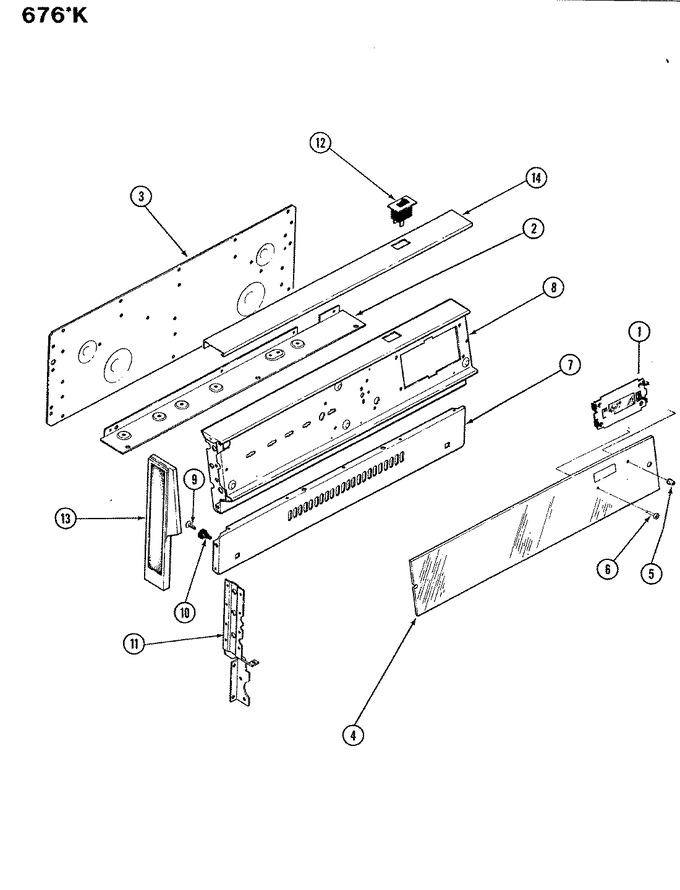

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7602P088-60		Clock	1	Appelez-nous	-
1	7602P097-60		Clock	3	Appelez-nous	-
2	4005F034-80		Cover, Bottom	1	Appelez-nous	-
3	4005F195-80		Cover, Backguard Wire	1	Appelez-nous	-
4	7910P126-60		Glass, Bkgd	15	Appelez-nous	-
4	7902P219-60		Glass, Backguard	1	Appelez-nous	-
4	7742P009-60		Trim, Retainer Glass	15	Appelez-nous	-
4	7720P088-60		Trim, Glass Ret	1	Appelez-nous	-
5	7711P172-60		Knob, Clock (blk)	1			$ 23.55
6	7103P053-60		Nut, Push-on End Cap	1	Appelez-nous	-
6	7711P422-60		Knob, Clock	1	Appelez-nous	-
7	2620W018-90		+ Panel, Bkgd Lower	1	Appelez-nous	-
8	2601W199-84		Panel, Backguard	1	Appelez-nous	-
9	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
9	WP8312P015-60		Shaft, Bit Generator   (Replaces: 8312P015-60)	1			$ 0.81
10	8010P069-60		Spacer, Hinge (main Top)	1			$ 8.57
11	WPW10068250		Screw   (Replaces: 7101P074-60)	1			$ 3.66
11	3807F348-51		Support, Bkgd End Lf	1	Appelez-nous	-
11	3807F349-51		Support, Bkgd End Rt	1	Appelez-nous	-
12	7403P067-60		Switch, Rocker (blk)   (Replaces: 7403P102-60)	1			$ 91.35
13	7726P032-60		Trim, Bkgd End (rt)	1	Appelez-nous	-
13	7726P031-60		Trim, Bkgd End (lt)	1	Appelez-nous	-
14	7715P015-60		Trim, Backguard Top	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
