SELECT A DIAGRAM
01 - Cover
03 - Door

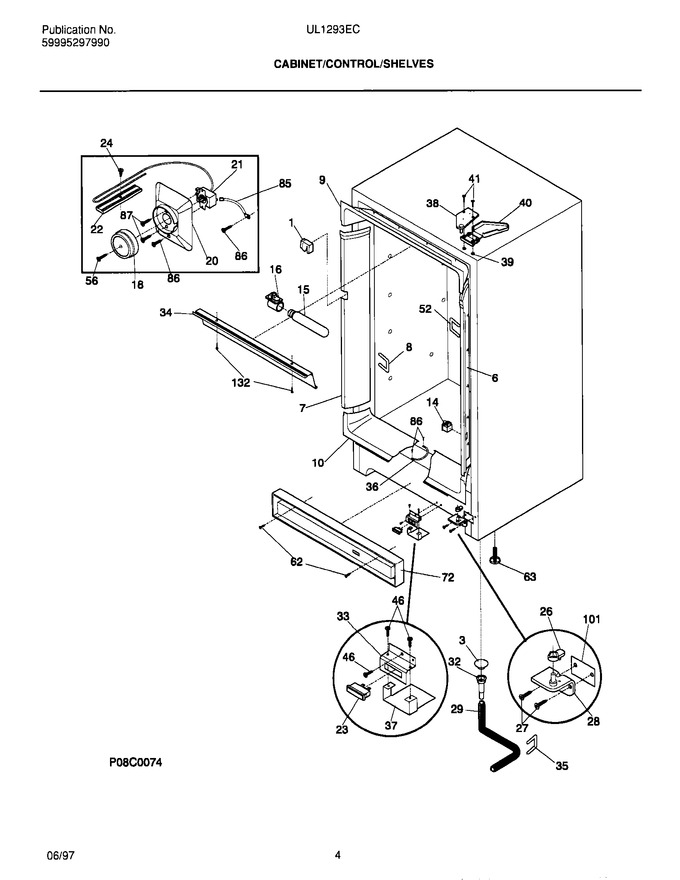

05 - Cabinet/control/shelves
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216323100 | Support, Lock |
|
- | |||||
| 3 | 216297600 | Plug-drain |
|
- | |||||
| 6 | 216108401 | Breaker, Hinge Side |
|
- | |||||
| 7 | 216108502 | Breaker,lock Side |
|
- | |||||
| 8 | 216328000 | Clip,u ,lock |
|
- | |||||
| 9 | 216073300 | Breaker Top |
|
- | |||||
| 10 | 216073200 | Breaker Bottom |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216222700) |
|
Immediately | $ 73.06 | ||||
| 16 | 5300136117 | Socket, Light/lamp |
|
$ 52.46 | |||||
| 18 | 216008602 | Knob-temp Control |
|
- | |||||
| 20 | 5303288184 | Cover-control Housing |
|
- | |||||
| 21 | 216405000 | Control-temperature |
|
- | |||||
| 22 | 08037931 | Clamp, Cap Tube, Cold Control |
|
- | |||||
| 23 | 06594648 | Signal Light, Amber |
|
- | |||||
| 24 | 5300052943 | Screw, Clamp, Truss Hd Cr, Control |
|
$ 5.30 | |||||
| 26 | 5303210424 | Ramp, Door |
|
- | |||||
| 27 | 216313000 | Screw,10-24x3/4,hinge |
|
- | |||||
| 28 | 216247400 | Hinge-bottom |
|
- | |||||
| 29 | 5304512272 | Hose Drain (Replaces: 216313500) |
|
Immediately | $ 15.90 | ||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 33 | 216252001 | Bracket, Signal Light |
|
- | |||||
| 34 | 216312302 | Shield-light |
|
- | |||||
| 35 | 216273000 | Clip, Drain Hose |
|
$ 22.42 | |||||
| 36 | 06594651 | Wire, Ground |
|
- | |||||
| 37 | 216159800 | Cover-indicator Light |
|
- | |||||
| 38 | 5303925086 | Hinge-upper |
|
- | |||||
| 39 | 5303294372 | Nut Insert-hinge |
|
$ 43.68 | |||||
| 40 | 5303212912 | Cover, Hinge |
|
- | |||||
| 41 | 5303212937 | Screw-top Hinge |
|
- | |||||
| 52 | 08037401 | Retainer, Wire, Breaker |
|
$ 2.85 | |||||
| 56 | 09950853 | Screw, Knob |
|
- | |||||
| 62 | 131168200 | Screw, 8-18 X 0.31 |
|
Immediately | $ 14.18 | ||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 72 | 216294307 | Grille/kickplate |
|
- | |||||
| 85 | 5300125347 | Wire-ground, Temp Control |
|
- | |||||
| 86 | 216036600 | Screw, Rwhd (gx, Ca), 8, 32 X 1/2 |
|
- | |||||
| 87 | 08037849 | Screw |
|
$ 8.98 | |||||
| 101 | 216313300 | Plate-tapping, Hinge |
|
- | |||||
| 132 | 5303283898 | Screw, 6-20ab X 3/8 |
|
- | |||||
| 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 | |||||
| 09948773 | Insulation, Drain Tube |
|
$ 12.60 | ||||||
| 06594680 | Clip, Breaker |
|
- |
