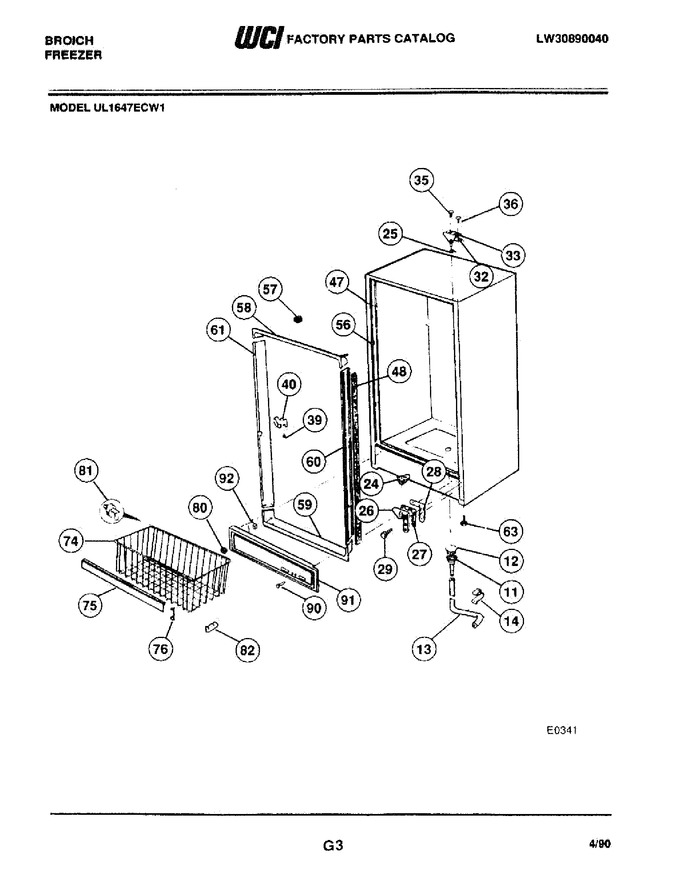

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
12	5306593887		Plug-drain		Appelez-nous	-
13	5308037944		Hose Drain		Appelez-nous	-
14	06593405		Clamp		Appelez-nous	-
24	F000900253		Ramp Door Closer		Appelez-nous	-
25	08016490		Bearing Hinge		Appelez-nous	-
26	5306594549		Hinge-bottom		Appelez-nous	-
27	5303207296		Spacer		Appelez-nous	-
28	06594550		Plate		Appelez-nous	-
29	154518001		Screw-bottom Hinge   (Replaces: 5303205738)				$ 10.54
32	06593894		Plate		Appelez-nous	-
33	5308037946		Hinge-top				$ 56.91
35	06593898		Screw		Appelez-nous	-
36	08037848		Screw-hinge-rear		Appelez-nous	-
39	216858001		Screw-latch Catch   (Replaces: 5303161215)			Immediately	$ 10.85
40	5309949966		Latch-catch		Appelez-nous	-
47	09950831		Insulation		Appelez-nous	-
48	09950831		Insulation		Appelez-nous	-
56	06594680		Clip, Breaker		Appelez-nous	-
57	08037937		Spacer Top Breaker		Appelez-nous	-
58	5308005501		Breaker Top		Appelez-nous	-
59	5308005502		Breaker Bottom		Appelez-nous	-
60	5300300738		Breaker Hinge		Appelez-nous	-
61	5308005512		Breaker Lock Side		Appelez-nous	-
63	5303205540		Leveling Leg		Appelez-nous	-
74	5300125250		Basket W/o Trim		Appelez-nous	-
80	5305878546		Basket Stop				$ 7.23
81	09948791		Stop, Basket		Appelez-nous	-
82	08009560		Glide, Basket				$ 35.25
82	F129806		Spacers Basket		Appelez-nous	-
90	5309950066		Pin Fastener		Appelez-nous	-
91	3206062		Base Trim		Appelez-nous	-
92	5300118003		Bumper		Appelez-nous	-
