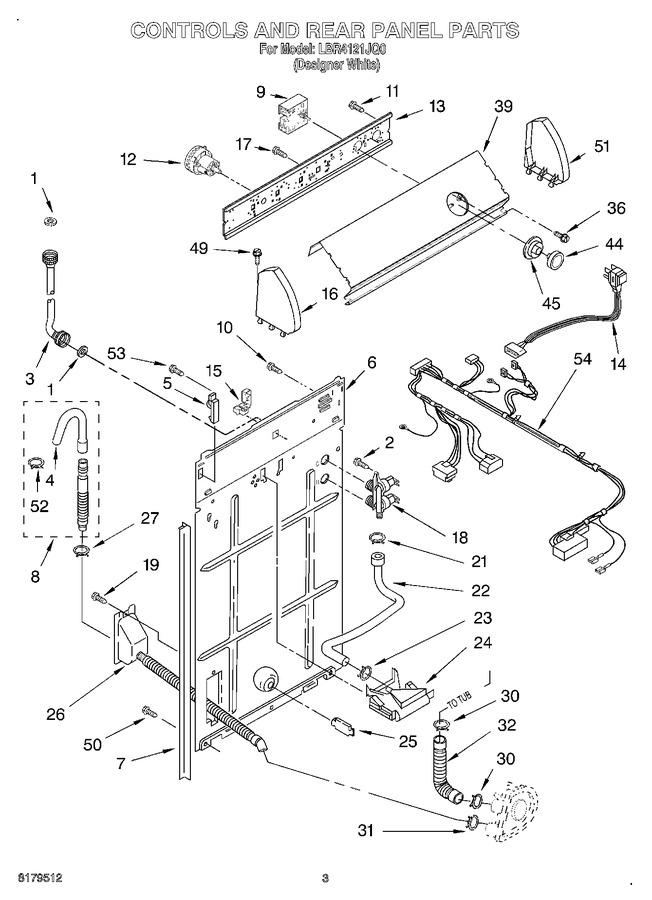

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) 1-1/16 X 5/8 (Replaces: 3976300) |
|
$ 6.93 | |||||
| 2 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.07 | ||||
| 3 | WP89503 | Hose, Water Inlet ((blue Coupler)) (Replaces: 3949374) |
|
Immediately | $ 21.68 | ||||
| 3 | WP89503 | Hose, Water Inlet ((red Coupler)) (Replaces: 3949375) |
|
Immediately | $ 21.68 | ||||
| 4 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 83.88 | |||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 3357976 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 23.63 | |||||
| 8 | 285664 | Hose, Drain (4 Ft.) (Replaces: 3951609) |
|
Immediately | $ 33.20 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 54.81 | ||||
| 8 | 285666 | Hose, Drain (9 Ft.) (not Included) (Replaces: 661577) |
|
Immediately | $ 56.11 | ||||
| 9 | 3946451 | Timer, Control (60 Hz.) (motor Not A Service Part) |
|
$ 189.84 | |||||
| 10 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.26 | ||||
| 11 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 12 | 3366850 | Switch, Water Level |
|
- | |||||
| 13 | 3948814 | Bracket, Control |
|
- | |||||
| 14 | W10820044 | Cord, Power (Replaces: 3948063) |
|
$ 128.46 | |||||
| 15 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 17 | 3400073 | Screw |
|
- | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 3952164) |
|
Immediately | $ 49.57 | ||||
| 19 | WP3351614 | Screw, 10-24 X 1/2 (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 7.56 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 62662) |
|
Immediately | $ 22.30 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 7.56 | ||||
| 24 | WP3347034 | Break, Vacuum (Replaces: 3347034) |
|
Immediately | $ 67.75 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 17.01 | ||||
| 26 | WPW10358149 | Hose-corrugated Assembly (Replaces: 3361805) |
|
Immediately | $ 43.34 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 3366912) |
|
Immediately | $ 7.67 | ||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.03 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 660628) |
|
Immediately | $ 7.55 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 3951449) |
|
Immediately | $ 24.01 | ||||
| 36 | WP3400064 | Screw, Timer Mounting (Replaces: 3400064) |
|
$ 6.26 | |||||
| 39 | 3954215 | Panel, Console |
|
- | |||||
| 44 | WP3364293 | Knob, Timer (Replaces: 8274290) |
|
Immediately | $ 53.51 | ||||
| 45 | 8274331 | Dial, Timer |
|
- | |||||
| 49 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 7.30 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.04 | |||||
| 51 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 52 | WP3357331 | Clamp, Drain Hose (Replaces: 3366913) |
|
$ 6.80 | |||||
| 53 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 54 | 3952569 | Harness, Wiring |
|
- |
