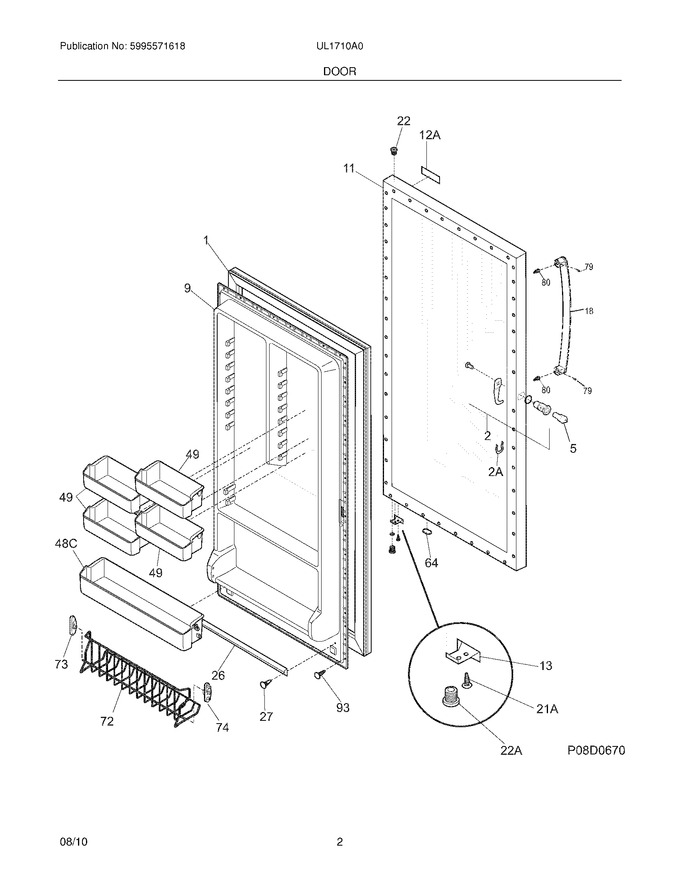

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507200		Gasket-door,white   (Replaces: 216522359)			Immediately	$ 188.19
2	297318600		Lock Assy				$ 36.87
5	297147700		Key,lock			Immediately	$ 7.57
9	297185800		Panel-inner Door,frzr				$ 147.95
11	297316557		Panel-outer Door,white		Appelez-nous	-
13	297257000		Door Stop,chrome ,rh				$ 16.63
18	297307070		Handle-door,stainless ,w/end Caps				$ 114.07
22	216970802		Bearing,hinge W/o`ring ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524201		Gasket,secondary				$ 49.62
27	5304472186		Clip,panel Mtg				$ 11.57
49	A00299203		Bin-door,2-liter   (Replaces: 297187200)				$ 80.33
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
72	297186701		Shelf,tilt Out ,wire				$ 74.39
73	216513900		End Cap,shelf ,lh ,tilt-out				$ 48.86
74	216514000		End Cap,shelf ,rh ,tilt-out				$ 48.05
79	297295900		Screw-set			Immediately	$ 19.52
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
12A	297013400		Bezel,nameplate ,white		Appelez-nous	-
21A	297197500		Screw,door Stop Mtg ,fh38-16x.750 ,p Twin				$ 14.46
22A	297006800		Bearing-hinge,btm, W/o`ring				$ 12.29
2A	297213300		Clip,spring				$ 10.17
48C	5304510193		Bin-door,gallon   (Replaces: 297225600)				$ 73.57
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	240537301		Nut-anchor,door Hdl Screw				$ 11.34
NI	5303297032		Insert-bezel		Appelez-nous	-
