SELECT A DIAGRAM

01 - Cover


03 - Door

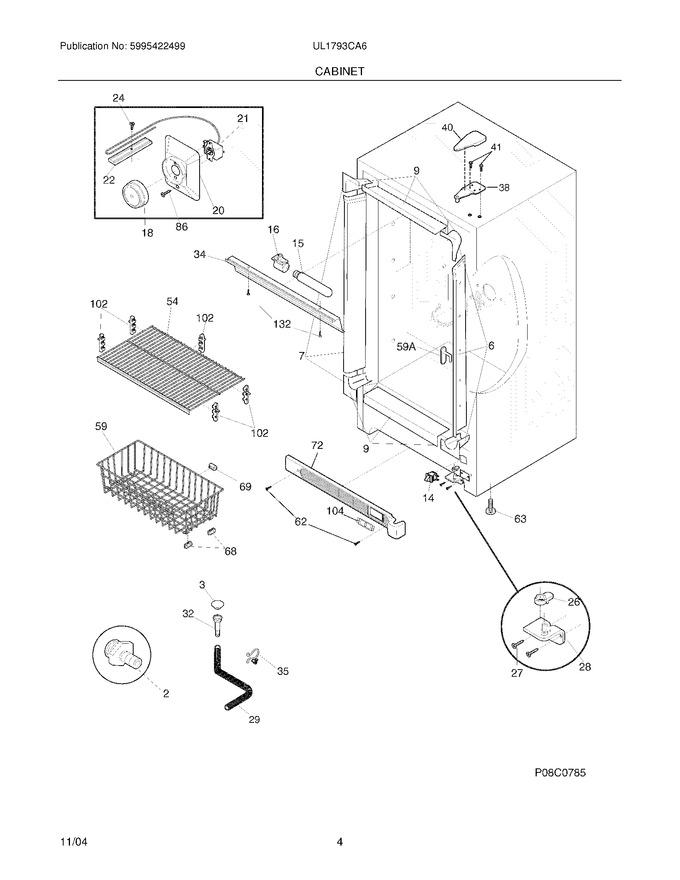

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	216269500		Adapter, Drain Hose				$ 14.81
3	216502600		Plug-drain,interior			Immediately	$ 17.35
6	216604200		Breaker Kit W/corners				$ 227.12
7	216603600		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216707200		Knob,temp Control				$ 44.10
20	216707300		Cover-control Housing		Appelez-nous	-
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	216503300		Ramp,door Closer				$ 8.82
27	216950800		Screw,10 X 0750 Shldr ,bottom Hinge		Appelez-nous	-
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304510363		Hose-drain   (Replaces: 216313502)				$ 13.74
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816206		Shield-light		Appelez-nous	-
35	216273000		Clip, Drain Hose				$ 22.42
38	216939100		Hinge-upper				$ 59.54
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	216936800		Screw-hinge,12-24x.700 Hwh ,btm		Appelez-nous	-
54	216077001		Shelf-dry		Appelez-nous	-
59	216154400		Basket		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
68	08009560		Glide Basket (4)				$ 35.25
69	5305878546		Bumper Basket (2)				$ 7.23
72	216946800		Grille/kickplate,32``		Appelez-nous	-
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
102	216486900		Support-shelf,(5)				$ 36.59
104	216926700		Shield				$ 42.06
104	216948401		Light,signal,assy W/bracket				$ 55.24
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
59A	216486500		Stop-basket				$ 20.58
F21	297216004		Control-temperature   (Replaces: 216788100)			Immediately	$ 53.52
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	216795005		Energy Guide		Appelez-nous	-
NI	216313300		Plate-tapping, Hinge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
