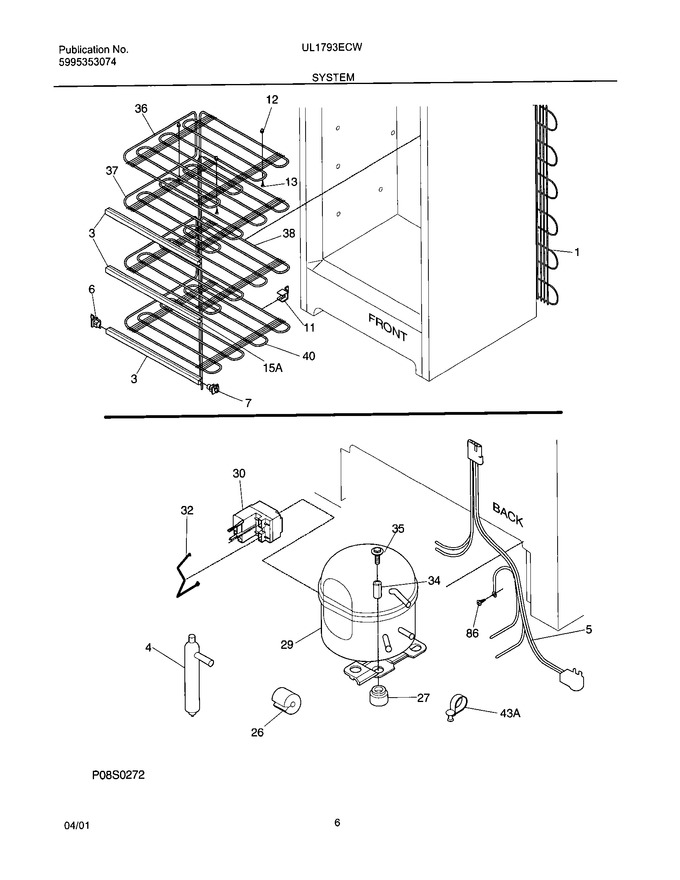

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
3	216444800		Trim-shelf,decorated		Appelez-nous	-
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216763300		Harness-main		Appelez-nous	-
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
26	216511900		Spacer-tube		Appelez-nous	-
27	216498900		Grommet,compressor				$ 13.01
29	5304511983		Compressor,service   (Replaces: 216639700)				$ 671.86
30	216649308		Controller-regulator Lp				$ 108.68
32	216731900		Clip-controller		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
36	297234500		Grid-top Evaporator   (Replaces: 216070500)				$ 357.92
37	297234500		Shelf-top Evaporator   (Replaces: 216070600)				$ 357.92
38	297234500		Shelf-middle Evaporator   (Replaces: 216070700)				$ 357.92
40	297234500		Shelf-bottom Evaporator   (Replaces: 216070800)				$ 357.92
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
	216502500		Sleeve-tube Insert				$ 10.85
15A	216401400		Heat Exchanger				$ 297.89
43A	216629700		Clip-harness		Appelez-nous	-
