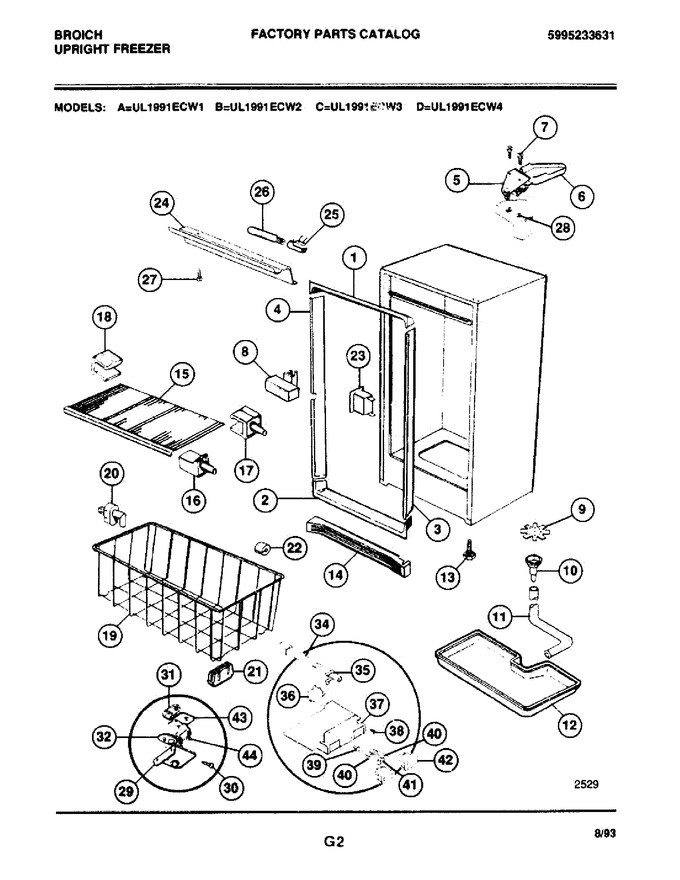

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	06594561		Breaker, Top		Appelez-nous	-
2	06594562		Breaker, Bottom		Appelez-nous	-
3	5303280424		Breaker-hinge Side		Appelez-nous	-
4	216014300		Breaker-lock Side		Appelez-nous	-
5	5303212935		Hinge, Top		Appelez-nous	-
6	5303212912		Cover, Hinge		Appelez-nous	-
7	5303212937		Screw-top Hinge		Appelez-nous	-
8	216013600		Support, Lock		Appelez-nous	-
8	216013700		Clip Lock		Appelez-nous	-
9	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
10	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
11	08037416		Hose		Appelez-nous	-
12	5308016387		Pan-defrost		Appelez-nous	-
13	5303205540		Leg Leveler		Appelez-nous	-
14	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
14	5303272325		Toe Grille		Appelez-nous	-
14	216216400		Panel-toe Plate		Appelez-nous	-
15	3206052		Shelf-lower		Appelez-nous	-
15	3206051		Shelf-upper		Appelez-nous	-
16	5306594706		Support, Front, Rh (5)		Appelez-nous	-
16	5306594707		Support, Front, Lh (5)		Appelez-nous	-
17	5306594584		Support-rear (6)				$ 19.80
18	08005520		Screw-door Stop		Appelez-nous	-
18	06594537		Insert, Nut		Appelez-nous	-
18	5306594585		Support-rear (4)		Appelez-nous	-
19	3206050		Basket		Appelez-nous	-
20	09948791		Stop, Basket		Appelez-nous	-
21	08009560		Glide, Basket				$ 35.25
22	5305878546		Bumper, Basket				$ 7.23
23	5308037962		Switch-light		Appelez-nous	-
24	216135000		Shield		Appelez-nous	-
25	5300136117		Socket, Bulb				$ 52.46
26	5303091423		Bulb		Appelez-nous	-
27	5303283898		Screw Light Shield		Appelez-nous	-
28	5303294372		Insert, Nut				$ 43.68
29	5303271078		Hinge		Appelez-nous	-
30	154518001		Screw-hinge   (Replaces: 5303205738)				$ 10.54
31	5303271072		Bearing-door,closer Ramp		Appelez-nous	-
32	5303271073		Bearing-hinge, Closer Ramp				$ 37.54
34	216219600		Harness-electrical		Appelez-nous	-
35	5303212614		Clip-wire				$ 2.88
36	5303212697		Buzzer,alarm		Appelez-nous	-
37	216216200		Bracket		Appelez-nous	-
38	08037851		Screw				$ 3.57
39	5303212828		Clip				$ 16.63
40	216219400		Light-pilot		Appelez-nous	-
41	216219500		Light-pilot		Appelez-nous	-
42	216219300		Switch		Appelez-nous	-
43	5303271076		Door Stop				$ 16.30
44	5303271077		Screw,flat Head ,1/4-20 ,door Stop/hng				$ 8.82

    View Diagram in Separate Window       Print Part List
