SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - Evaporator


09 - Compressor

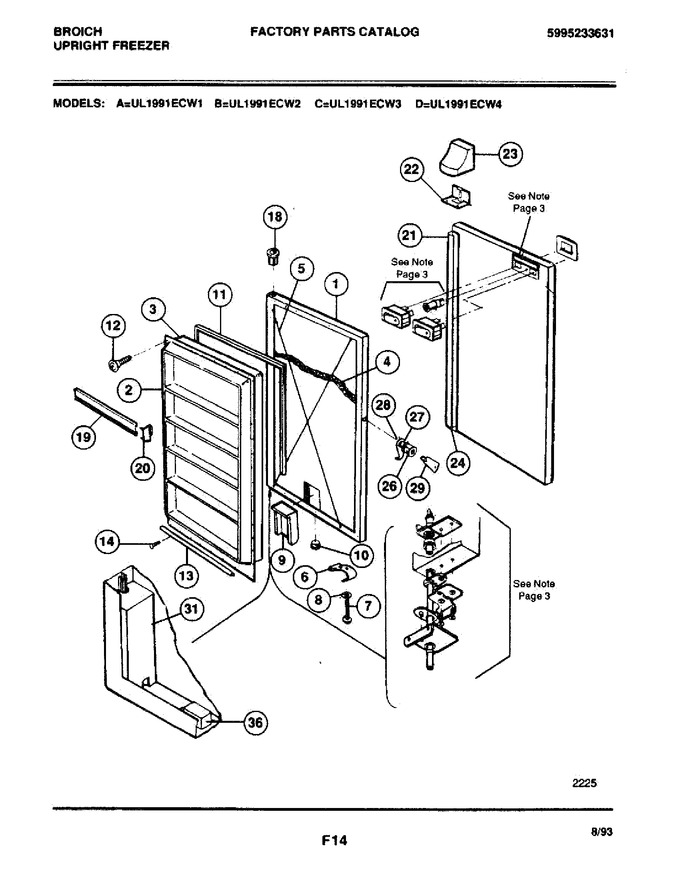

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303925215		Panel-outside Door		Appelez-nous	-
2	5303283896		Panel Inner		Appelez-nous	-
3	09950831		Insulation (cut To Size)		Appelez-nous	-
4	5303007739		Insulation-door (bulk)		Appelez-nous	-
5	08037981		Wire Adjusting		Appelez-nous	-
6	05879859		Bracket		Appelez-nous	-
7	5300057906		Screw		Appelez-nous	-
8	09950839		Washer		Appelez-nous	-
9	5303212700		Air Duct		Appelez-nous	-
10	5309950074		Valve, Breather				$ 12.48
11	3206256		Gasket-door				$ 248.43
12	216858001		Screw Panel   (Replaces: 5303161215)			Immediately	$ 10.85
12	216022800		Screw-panel		Appelez-nous	-
13	5308016356		Gasket, Secondary		Appelez-nous	-
14	5303212828		Clip				$ 16.63
18	5306593364		Bearing-top		Appelez-nous	-
19	3206054		Shelf Front Wide (5)		Appelez-nous	-
20	09948971		End Cap-lh		Appelez-nous	-
20	5309948970		End Cap, Rh, Wide (5)		Appelez-nous	-
21	3206048		Handle Door		Appelez-nous	-
22	5300119930		Retainer Handle		Appelez-nous	-
23	3206043		Handle End Cap-top		Appelez-nous	-
24	3206044		Handle End Cap-bottom		Appelez-nous	-
24	5303283898		Screw End Cap		Appelez-nous	-
24	5303161233		Screw		Appelez-nous	-
25	5303272315		Nameplate		Appelez-nous	-
26	5303925107		Lock-complete		Appelez-nous	-
27	5300114366		Washer-lock		Appelez-nous	-
28	3202005		Lock Hook		Appelez-nous	-
29	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
30	5303271074		Bushing		Appelez-nous	-
31	5303272316		Guard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
