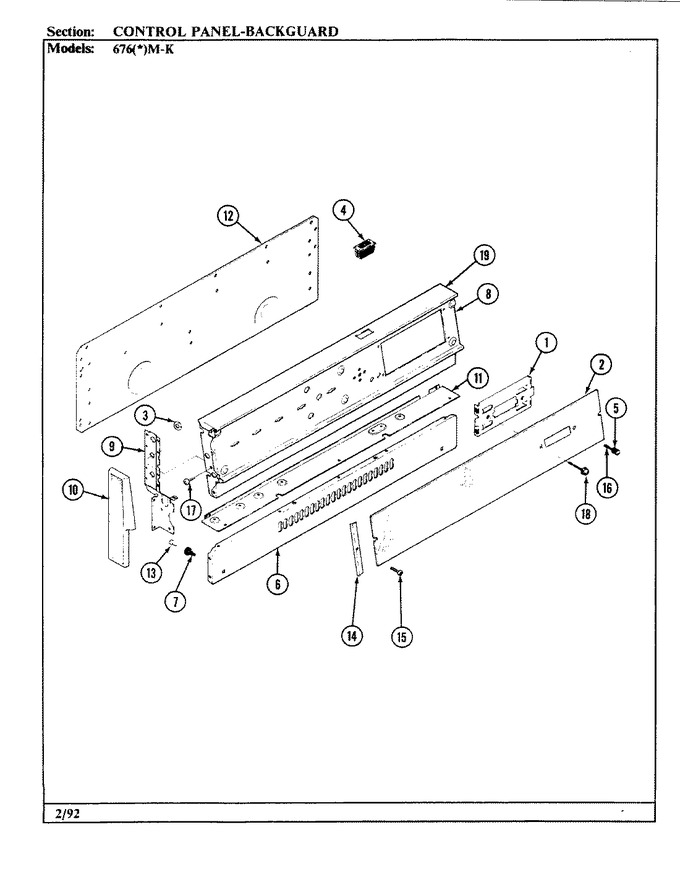

01 - Control Panel
02 - Control Panel/top Assy./body
03 - Control System
04 - Door/drawer
05 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7602P097-60 | Clock | 1 |
|
- | ||||
| 2 | 7910P126-60 | Glass, Bkgd | 1 |
|
- | ||||
| 3 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 4 | 7403P067-60 | Switch, Rocker (blk) | 1 |
|
$ 91.35 | ||||
| 5 | 7711P172-60 | Knob, Clock (blk) | 1 |
|
$ 23.55 | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 6 | 2620F053-09 | Panel, Lower | 1 |
|
- | ||||
| 7 | 7105P002-60 | Support, Main Top | 1 |
|
- | ||||
| 8 | 2601W199-84 | Panel, Backguard | 1 |
|
- | ||||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 9 | 3807F348-51 | Support, Bkgd End Lf | 1 |
|
- | ||||
| 9 | 3807F349-51 | Support, Bkgd End Rt | 1 |
|
- | ||||
| 10 | 7726P031-60 | Trim, Bkgd End (lt) | 1 |
|
- | ||||
| 10 | 7726P032-60 | Trim, Bkgd End (rt) | 1 |
|
- | ||||
| 11 | 4005F034-80 | Cover, Bottom | 1 |
|
- | ||||
| 12 | 4005F393-80 | Cover Bkgd Wire | 1 |
|
- | ||||
| 12 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 6.98 | ||||
| 13 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 14 | 7742P009-60 | Trim, Retainer Glass | 1 |
|
- | ||||
| 15 | 7101P008-60 | Screw | 1 |
|
- | ||||
| 16 | WP8312P015-60 | Shaft, Bit Generator (Replaces: 8312P015-60) | 1 |
|
$ 0.81 | ||||
| 17 | WPW10068250 | Screw (Replaces: 7101P074-60) | 1 |
|
$ 3.66 | ||||
| 18 | 7711P422-60 | Knob, Clock | 1 |
|
- | ||||
| 19 | 5180A008-60 | Harness Upper | 1 |
|
- | ||||
| 19 | 7715P015-60 | Trim, Backguard Top | 1 |
|
- |
