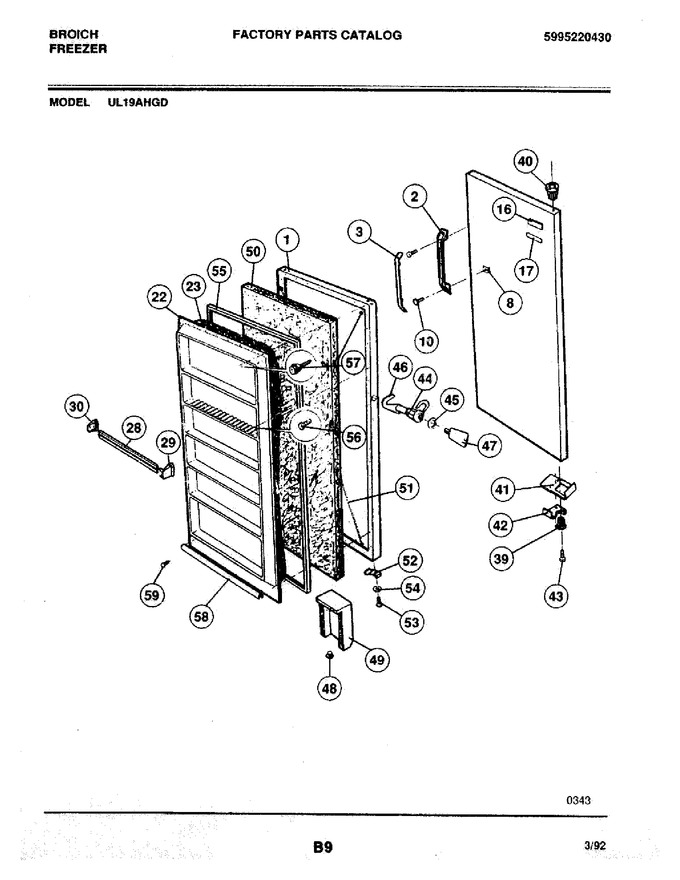

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303925038		Door Panel		Appelez-nous	-
2	F126162		Handle Door		Appelez-nous	-
3	3017682		Insert Handle			Immediately	$ 43.24
8	3202683		Plate Reinforcement		Appelez-nous	-
10	216858001		Screw Handle   (Replaces: 5303161215)			Immediately	$ 10.85
16	5303285577		Nameplate		Appelez-nous	-
17	5303285578		Insert Nameplate		Appelez-nous	-
22	F124702-95		Panel-inner		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
28	3017746		Shelf Front Narrow		Appelez-nous	-
29	5309948967		End Cap Rh Narrow		Appelez-nous	-
30	5309948968		End Cap-lh Narrow		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	5306593364		Bearing-top		Appelez-nous	-
41	5300091170		Reinforcement, Door Stop		Appelez-nous	-
42	06593882		Door Stop		Appelez-nous	-
43	08005520		Screw-door Stop		Appelez-nous	-
44	5300190358		Lock		Appelez-nous	-
45	5300114366		Sealing Washer Lock		Appelez-nous	-
46	3202005		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve, Breather				$ 12.48
49	5300128421		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037981		Wire Adjusting		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw, Bracket		Appelez-nous	-
54	09950839		Washer, Bracket		Appelez-nous	-
55	3206259		Gasket Door-gray		Appelez-nous	-
56	216858001		Screw-door Panel   (Replaces: 5303161215)			Immediately	$ 10.85
57	08009384		Screw-panel		Appelez-nous	-
58	5308016356		Gasket		Appelez-nous	-
59	5303212828		Rivet Gasket				$ 16.63
	5300460947		Tape Nameplate				$ 9.82
